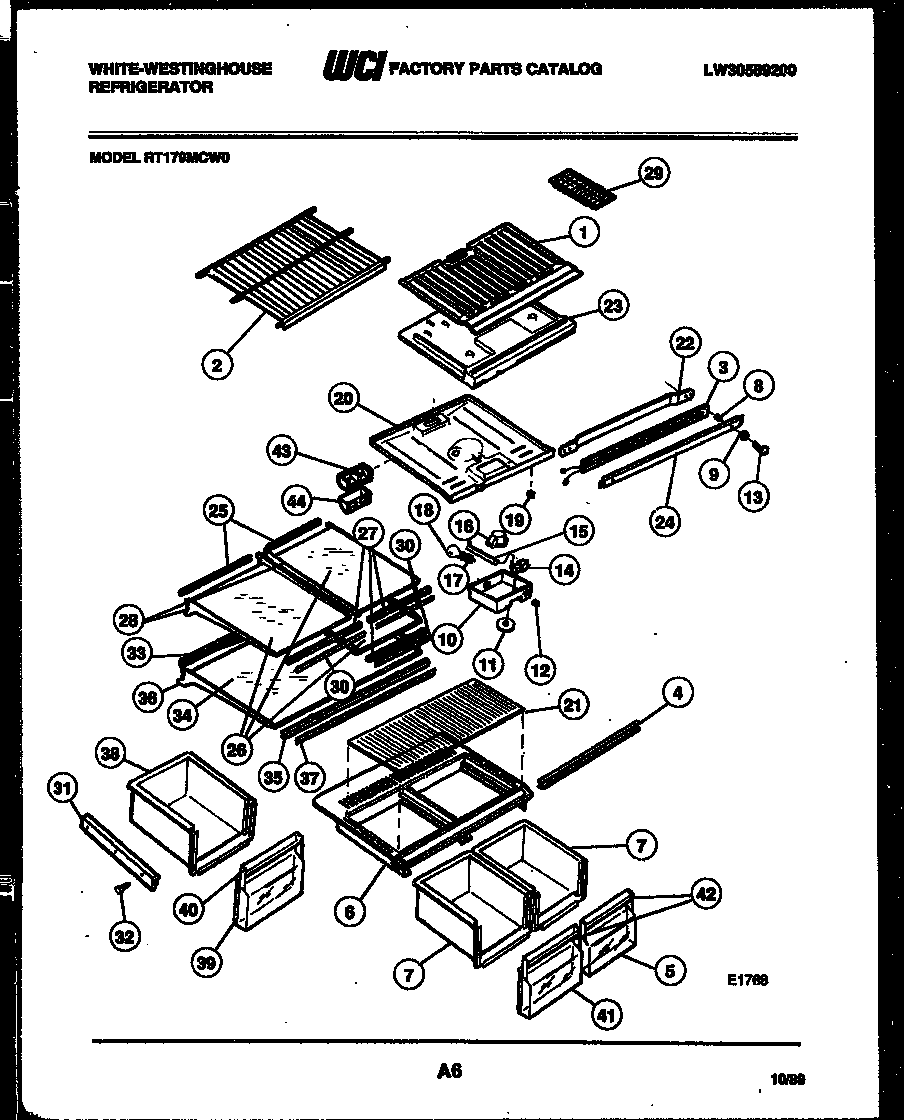

RT179MCW0 04 – SHELVES AND SUPPORTSadmin2025-04-26T10:31:16+00:00RT179MCW0 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| *23249 | CLIP, SHELF (8) |
| 1 | WCI 3206187 |
| 2A | END CAP-SHELF,PROTECTOR |
| 2C | 5304509705 Frigidaire Refrigerator Grommet |
| 2D | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 2 | WCI 3206353 |
| 2B | TRIM-FRZR SHELF |
| 3 | WCI 3206120 |
| 4 | WCI 3206372 |
| 5 | WCI 3206354 |
| 6 | WCI 3206183 |
| 7 | PAN - CRISPER |
| 8 | SPACER (NON-ILLUSTRATED) |
| 9 | WASHER (2) |
| 10A | 5304455650 Frigidaire Refrigerator Screw |
| 10 | WCI 3206130 |
| 11 | KNOB-TEMP CONTROL |
| 12 | WCI 3206129 |
| 13 | SCREW - MULLION (2) |
| 14A | WCI G107080 |
| 14 | CONTROL-TEMPERATURE |
| 15 | WCI 3018891 |
| 16A | 5304455649 Frigidaire Refrigerator Screw |
| 16 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 17 | 218906802 Frigidaire Light Lamp Socket |
| 18 | 316538904 Frigidaire Oven Lamp Light |
| 19 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 20A | SCREW (5) |
| 20 | WCI 3206185 |
| 21 | WCI 3206355 |
| 22 | CLAMP, MULLION MOUNTING |
| 23 | WCI 3206186 |
| 23B | 3205266 Frigidaire Refrigerator Edge Protector |
| 23A | WCI 3018900 |
| 24 | WCI 3206121 |
| 25 | WCI 3206413 |
| 26 | SHELF-GLASS, HALF SHELF, (3) |
| 27 | RETAINER-GLASS, (3) (NON-ILLUSTRATED) |
| 28A | FRAME-MEAT KPR SHELF, CANTILEVER |
| 28 | FRAME-HALF SHELF, CANTILEVER, (2) |
| 29 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 30 | TRIM-HALF SHELF, (3) |
| 31 | WCI 3206379 |
| 31A | WCI 3206380 |
| 32 | WCI 08014528 |
| 33 | WCI 3206374 |
| 34 | WCI 3206376 |
| 34A | RAIL-GLASS SUPT (2) (NON-ILLUSTRATED) |
| 35 | PANEL-BOTTOM |
| 36 | FRAME-CANTILEVER (2) |
| 37 | WCI 3206206 |
| 38 | WCI 3206351 |
| 39 | WCI 3206210 |
| 40 | WCI 3206211 |
| 41 | FRONT-CRISPER PAN-LH |
| 42 | WCI 3206213 |
| 43 | WCI 3204206 |
| 44 | WCI G162178 |
