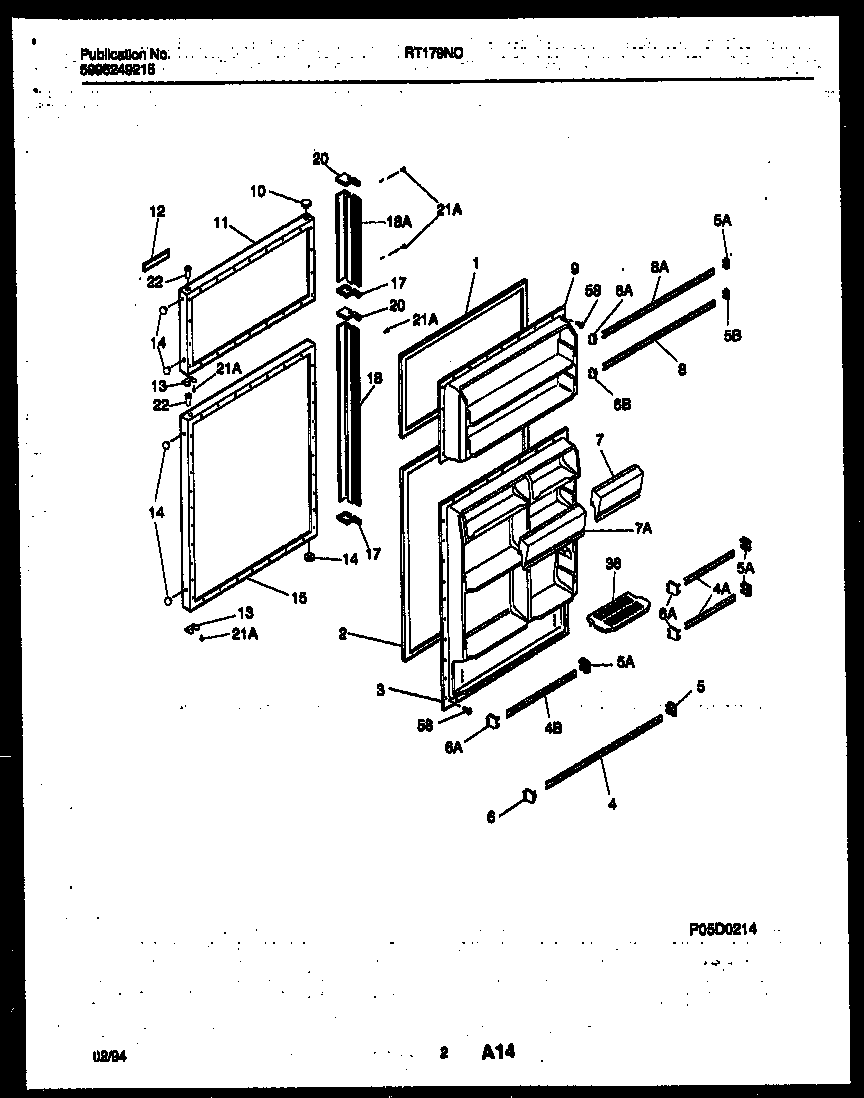

RT179NCD1 02 – DOOR PARTS

RT179NCD1 02 – DOOR PARTS

Written by

in

RT179NCD1 02 – DOOR PARTS

Products

PositionProduct
*89061INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3PANEL-REFRIGERATOR INNER
4RACK-DOOR
4ARACK-DOOR, SHORT, NARROW, (2)
4BWCI 3206190
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7DOOR, DAIRY
7ADOOR-DAIRY
7BWCI 5303001380
8ARACK-DOOR, NARROW
8RACK-DOOR
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12WCI 3206159
12ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
17AWCI 5300179271
17WCI 5300177143
18AWCI 5303277266
18HANDLE-DOOR, 44“ LONG, W/ END CAPS
18AWCI 5300177144
20AWCI 5300179270
20WCI 5300177142
21AWCI 5308011745
22BEARING-HINGE
36WCI 3206189
585304455651 Frigidaire Refrigerator Screw
