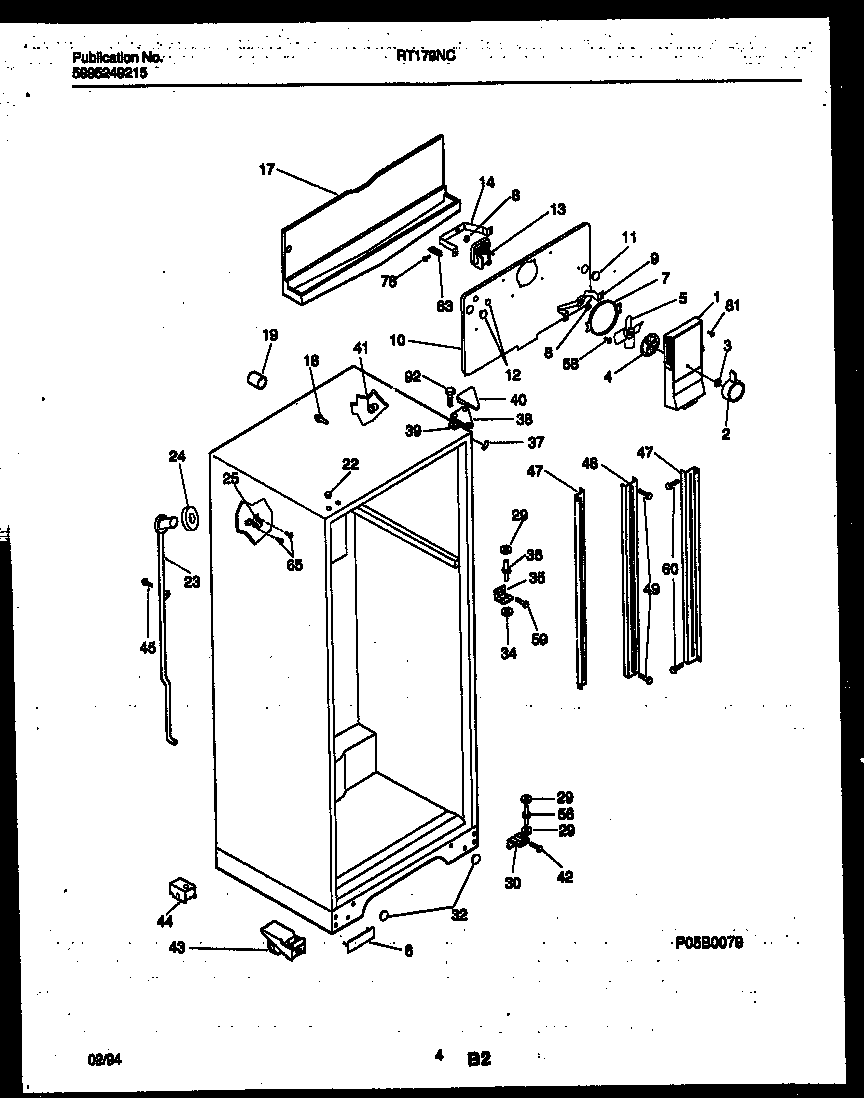

RT179NCD1 03 – CABINET PARTS

RT179NCD1 03 – CABINET PARTS

Written by

in

RT179NCD1 03 – CABINET PARTS

Products

PositionProduct
*89075PLUG, BUTTON, CABINET LINER (NI)
1WCI 3206207
1AWCI 3206208
2WCI 3206381
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 215846500
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206119
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215379100
12WCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 3206146
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
22A5304500008 Frigidaire Oven Screw
23WCI 5303269702
24WCI 5303207353
25WCI 5308000056
29WASHER, .34 X .62 X .05, NYLON
30WCI 3206136
30ATAPPING PLATE, LOWER HINGE, (2) (NI)
32WCI 215217702
34WCI 5308000186
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43BBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43WCI 5300188673
43AWCI 5308009760
43CWCI 5308009790
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 3206202
48WCI 3916030
49WCI 5308016568
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59WCI 5308012258
605304455852 Frigidaire Refrigerator Screw
65WCI 5303001361
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
