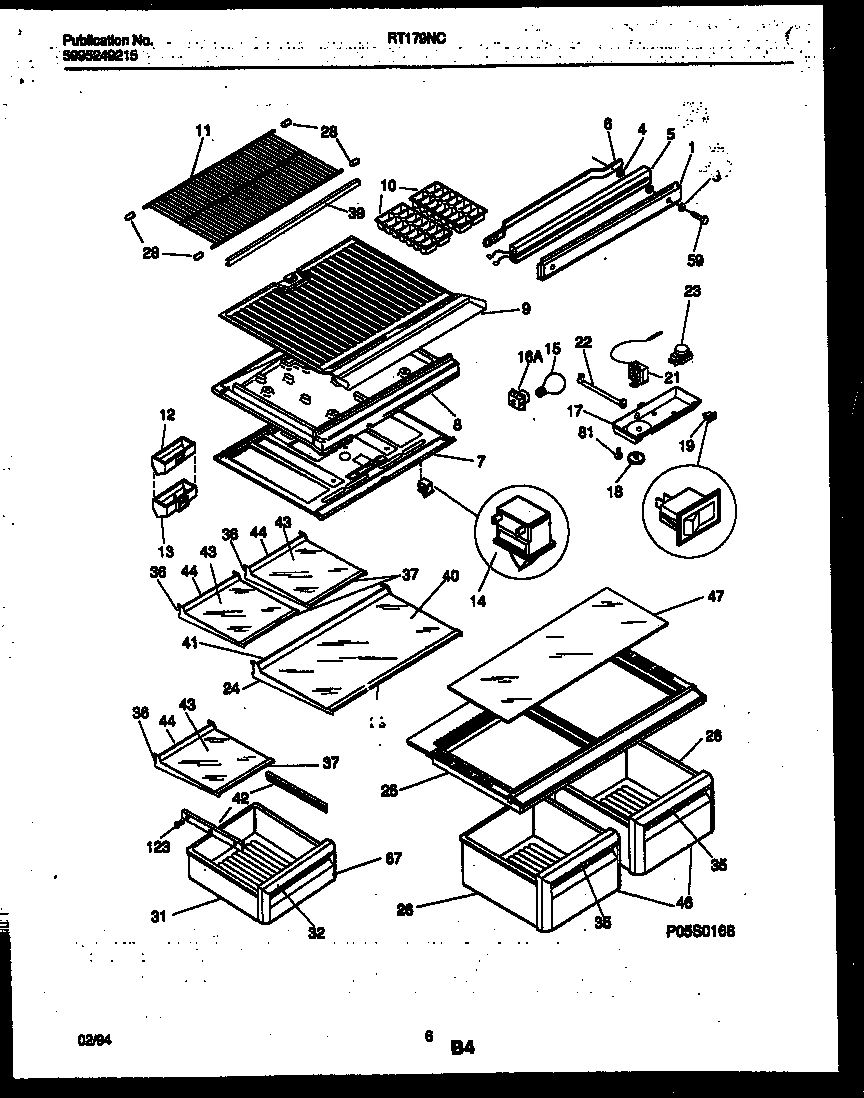

RT179NCD1 04 – SHELVES AND SUPPORTS

RT179NCD1 04 – SHELVES AND SUPPORTS

Written by

in

RT179NCD1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*89087CLIP-CANTILEVER SHLF
*89087PANEL-BOTTOM
*89087RETAINER-GLASS, (3) (NON-ILLUSTRATED)
1WCI 3206125
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206120
6WCI 215170801
7AWCI 5303001380
7WCI 3206185
8WCI 3206186
8A3205266 Frigidaire Refrigerator Edge Protector
8BWCI 3018900
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 3206353
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 3206130
18WCI 5303209251
19WCI 3206129
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
24FRAME-CANTILEVER (2)
25AWCI 3206372
25WCI 3206183
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 5303209641
31WCI 3206351
32WCI 5303209218
35WCI 5303209226
36FRAME-MEAT KPR SHELF, CANTILEVER
36FRAME-HALF SHELF, CANTILEVER, (2)
37TRIM-HALF SHELF, (3)
39TRIM-FRZR SHELF
40WCI 3206376
41WCI 3205268
42WCI 3206379
42WCI 3206380
43SHELF-GLASS, HALF SHELF, (3)
44WCI 3205270
46WCI 5303299834
47WCI 5303271945
59WCI 5308012258
67WCI 5303299838
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
