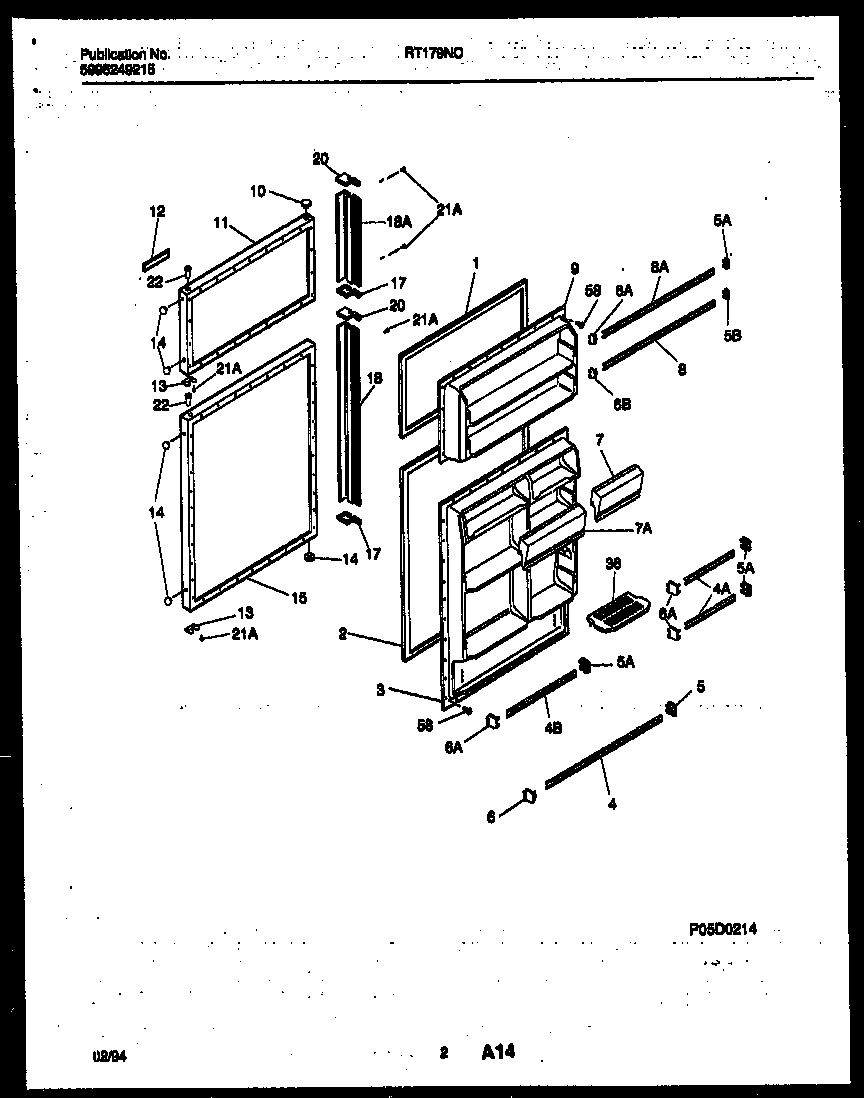

RT179NCW1 02 – DOOR PARTSadmin2025-04-26T10:32:22+00:00RT179NCW1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *89061 | INSULATION |
| 1 | GASKET-FRZR DOOR, MAGNETIC, WHITE |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | PANEL-REFRIGERATOR INNER |
| 4B | WCI 3206190 |
| 4A | RACK-DOOR, SHORT, NARROW, (2) |
| 4 | RACK-DOOR |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 5 | WCI 3206150 |
| 5B | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 6 | WCI 3206151 |
| 6A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6B | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 7 | DOOR, DAIRY |
| 7A | DOOR-DAIRY |
| 7B | WCI 5303001380 |
| 8A | RACK-DOOR, NARROW |
| 8 | RACK-DOOR |
| 9 | PANEL-INNER DOOR, FRZR |
| 10 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 11 | PANEL-FRZR DOOR, WHITE |
| 12 | WCI 3206159 |
| 12A | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 13 | WCI 5308000255 |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | PANEL-REFR DOOR, WHITE |
| 17 | WCI 5300177143 |
| 17A | WCI 5300179271 |
| 18A | WCI 5300177144 |
| 18 | HANDLE-DOOR, 44`` LONG, W/ END CAPS |
| 18A | WCI 5303277266 |
| 20 | WCI 5300177142 |
| 20A | WCI 5300179270 |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 36 | WCI 3206189 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
