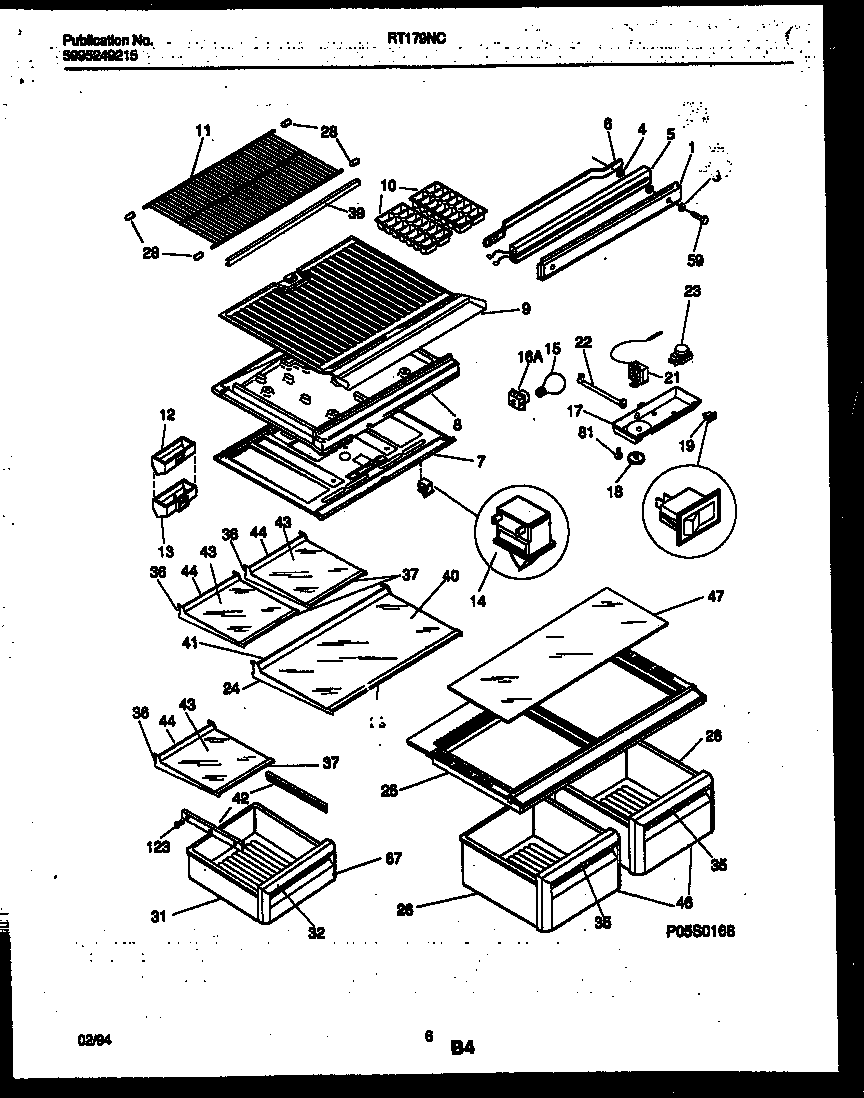

RT179NCW1 04 – SHELVES AND SUPPORTS

Written by

Products

Position	Product
*89087	CLIP-CANTILEVER SHLF
*89087	PANEL-BOTTOM
*89087	RETAINER-GLASS, (3) (NON-ILLUSTRATED)
1	WCI 3206121
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	WCI 215882100
5	WCI 3206120
6	WCI 215170801
7	WCI 3206185
7A	WCI 5303001380
8A	3205266 Frigidaire Refrigerator Edge Protector
8B	WCI 3018900
8	WCI 3206186
9	WCI 3206187
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 3206353
12	DEFLECTRO, AIR, W/SEAL
12A	5303001449 Frigidaire Refrigerator Seal
13	WCI 5303001448
13A	EXTENSION, AIR DEFLECTOR, WITH INSULATION
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17A	NUT, ANCHOR (NI)
17	WCI 3206130
18	WCI 5303209251
19	WCI 3206129
21	WCI 5303018894
21A	WCI 5303001260
22	WCI 3018891
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A	5304455649 Frigidaire Refrigerator Screw
24A	RAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
24	FRAME-CANTILEVER (2)
25A	WCI 3206372
25	WCI 3206183
26	PAN – CRISPER
28	END CAP-SHELF,PROTECTOR
29	WCI 5303209641
31	WCI 3206351
32	WCI 5303209218
35	WCI 5303209226
36	FRAME-MEAT KPR SHELF, CANTILEVER
36	FRAME-HALF SHELF, CANTILEVER, (2)
37	TRIM-HALF SHELF, (3)
39	TRIM-FRZR SHELF
40	WCI 3206376
41	WCI 3205268
42	WCI 3206379
42	WCI 3206380
43	SHELF-GLASS, HALF SHELF, (3)
44	WCI 3205270
46	WCI 5303299834
47	WCI 5303271945
59	WCI 5308012258
67	WCI 5303299838
81	5304455650 Frigidaire Refrigerator Screw
123	WCI 08014528
