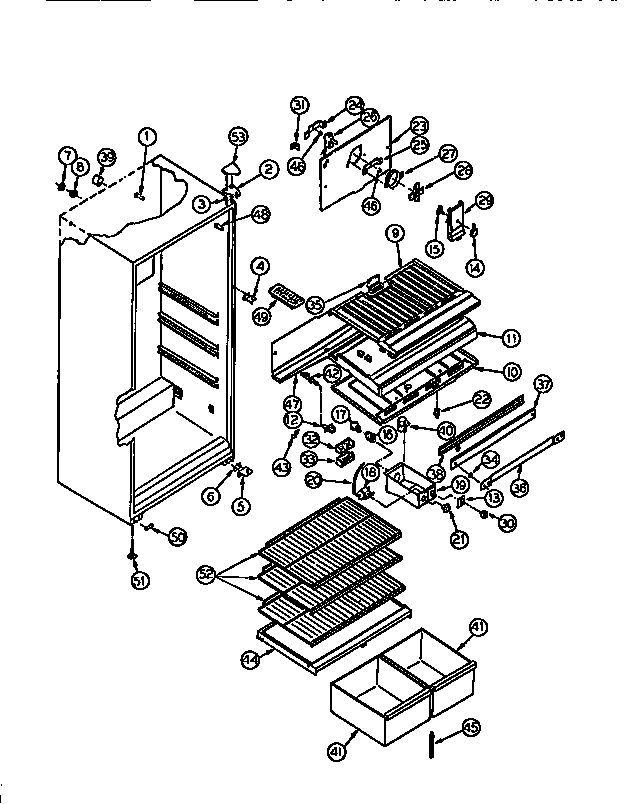

RT17F2WT3A 05 – CABINET PARTS

Products

Position	Product
30	WCI G178402-05
31	WCI G164571
31A	5304455651 Frigidaire Refrigerator Screw
32	DEFLECTOR AIR
33	WCI G162178
34A	WASHER (2)
34	SPACER, MULLION (2)
35	PAD, FOAM (2)
36	CLAMP, MULLION MOUNTING
37	WCI G490086
38	HTR, CENTER RAIL
39	TUBE, INSULATION (2)
40	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
40A	5304455649 Frigidaire Refrigerator Screw
41	PAN-CRISPER
41A	PAN-SMALL LS
42	TUBE, DRAIN
43	WCI G101747
44	COVER-CRISPER
45	SUPPORT, CRISPER COVER
46	G187559 Frigidaire Refrigerator Bushing
47	TROUGH-DRAIN
48	WCI G179684-01
49	215667501 Frigidaire Refrigerator Ice Tray Primary
50	WCI G166912
51A	NUT, ANCHOR (2)
51	LEG-LEVELING (2)
52	SHELF
53	COVER HINGE, WHITE
