RT17F2WT3B 02 – DOOR PARTS

RT17F2WT3B 02 – DOOR PARTS

Written by

in

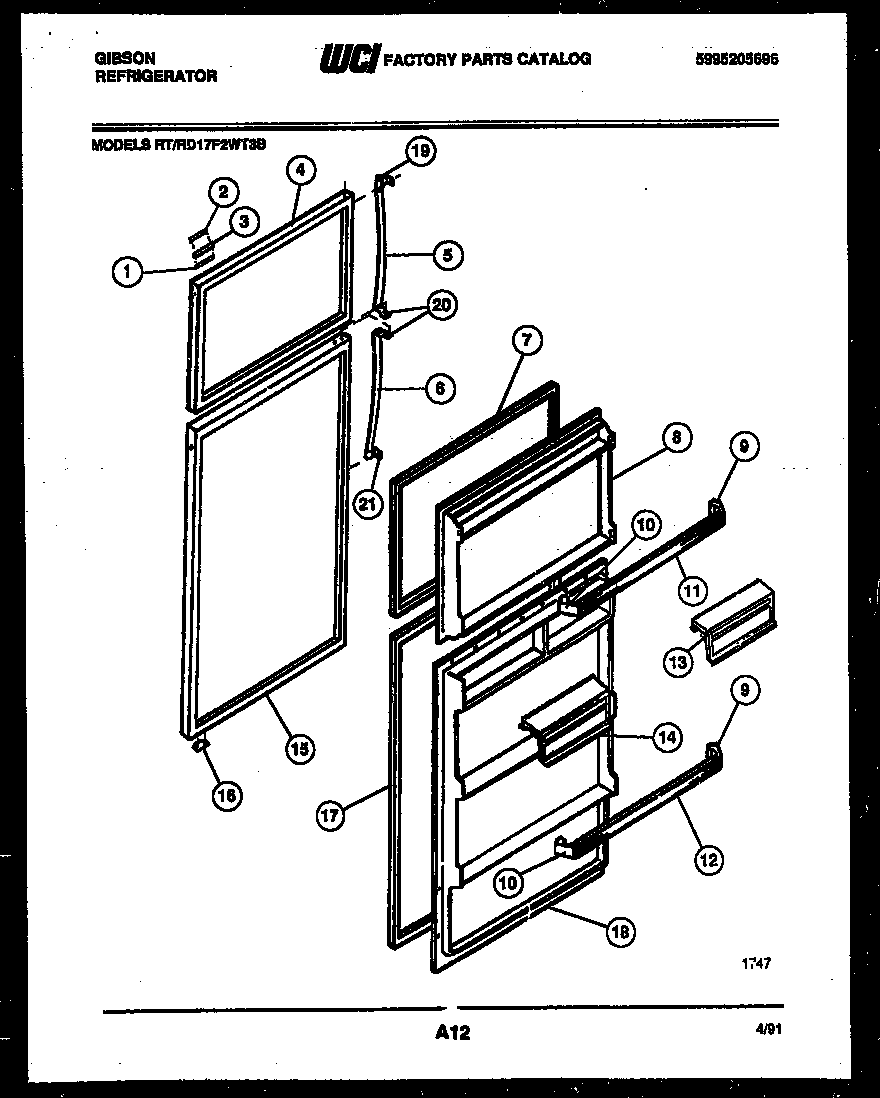

RT17F2WT3B 02 – DOOR PARTS

Products

PositionProduct
*43445240494001 Frigidaire Refrigerator Plug Button
*43445BUTTON PLUG-COFFEE
*43446BUTTON PLUG-COFFEE
*43446BUTTON-WHEAT
*43445BUTTON-AVOCADO
*43444PLUG-BUTTON, WHITE, HINGE BRG HOLE
*43446PLUG-BUTTON, ALMOND, HANDLE/DR STOP
*43445PLUG-BUTTON, ALMOND, HINGE BRG HOLE
*43445BUTTON-WHEAT
*43446BUTTON-AVOCADO
1LABEL-LOWER
2LABEL UPPER
3NAMEPLATE
3ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
4FREEZER DOOR – WHEAT
4FREEZER DOOR – WHITE
4WCI 5317827110
4FREEZER DOOR – ALMOND
4FREEZER DOOR – AVOCADO
5WCI 5317049526
6AWCI 5308011745
6WCI G170495-24
7WCI 5303001399
8WCI 5318455701
9SUPPORT RH (4)
10SUPPORT LH (4)
12DOOR RACK (4)
13WCI 3015414
14WCI 5317850103
15REFRIGERATOR DOOR-WHITE
15REFRIGERATOR DOOR-ALMD
15REFRIGERATOR DOOR-COFFEE
15REFRIGERATOR DOOR-WHEAT
15REFRIGERATOR DOOR-AVOC
15ABEARING-HINGE
16WCI 5308000255
17218730603 Frigidaire Door Gasket
18A5304455651 Frigidaire Refrigerator Screw
18WCI 5318455801
19WCI 5303001297
20WCI 5303001296
21BOTTOM HANDLE END CAP
