RT17F2WT3B 04 – SHELVES AND SUPPORTS

RT17F2WT3B 04 – SHELVES AND SUPPORTS

Written by

in

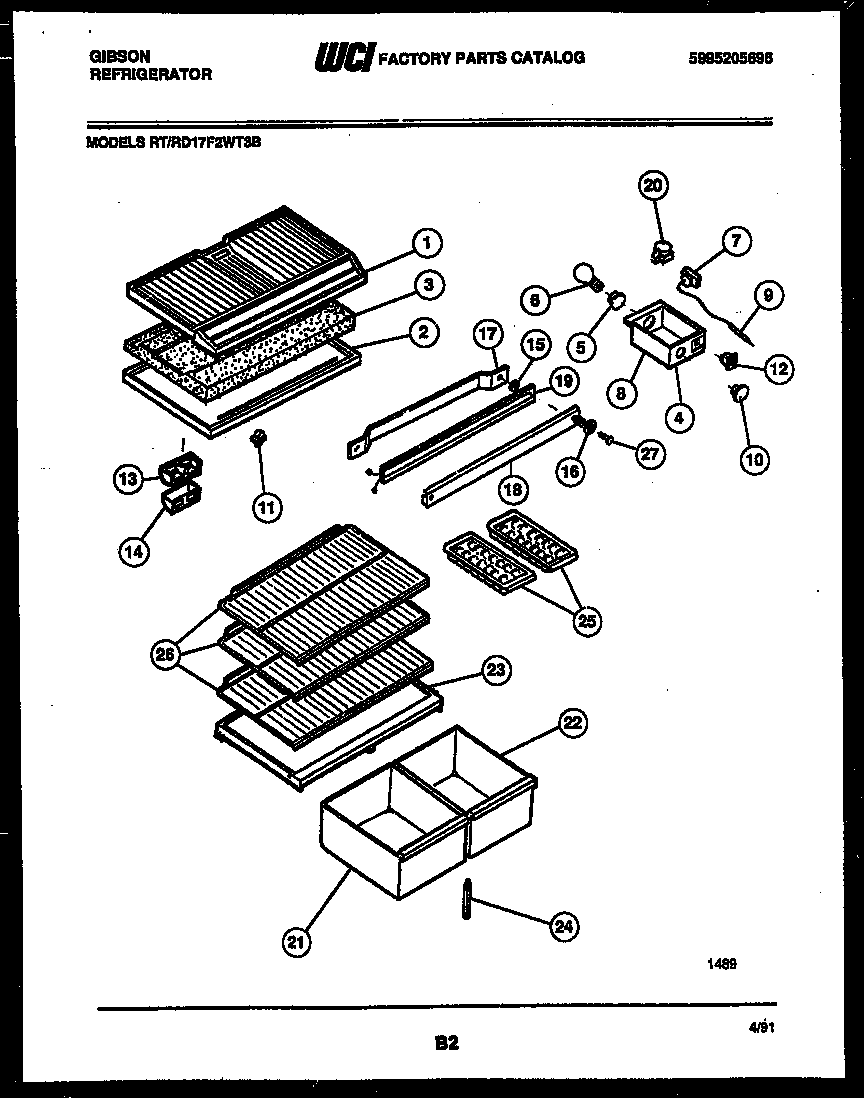

RT17F2WT3B 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303001537
2BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
2AWCI 5303001380
3AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
3WCI 5308009750
4LABEL-CONTROL BOX (NON-ILLUSTRATED)
5SOCKET-LIGHT/LAMP
6316538904 Frigidaire Oven Lamp Light
7WCI 5303200810
7AWCI 5303001260
8WCI 5308009730
9TUBE
10WCI 08006978
115309918806 Frigidaire Refrigerator Light Switch Door
12SWITCH-SLIDE
13DEFLECTOR-AIR
14COVER – AIR DEFLECTOR
15WCI 5308010007
16WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
17WCI 5308003604
18WCI 3916135
18WCI 3916132
18WCI 3916133
18WCI 5303916134
18WCI 5303200465
19WCI 5308017408
20215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
20A5304455649 Frigidaire Refrigerator Screw
21PAN-CRISPER
22PAN-SMALL-LH
23COVER-CRISPER PAN
24SUPPORT-CRISPER CVR, ADJUSTABLE
25215667501 Frigidaire Refrigerator Ice Tray Primary
26SHELF
27WCI 5308012258
