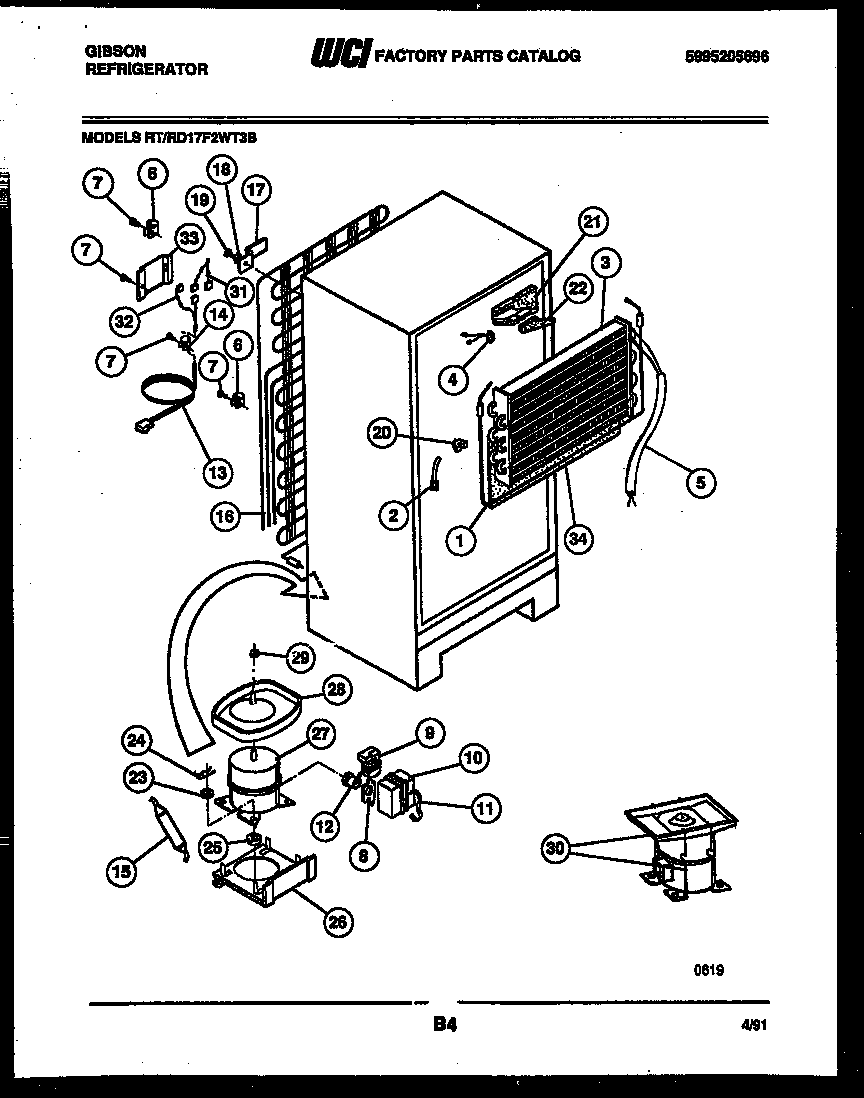

RT17F2WT3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT17F2WT3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT17F2WT3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*43473HOT TUBE REPAIR KIT-SERVICE
1WCI 5308009754
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5WCI 5308000728
65308000133 Frigidaire Refrigerator Clamp
75304455651 Frigidaire Refrigerator Screw
8CLIP-OVERLOAD
9WCI 5303007171
115303006412 Frigidaire Refrigerator Cover Mounting Strap
12WCI 5303007416
13CORD-ELECTRIC POWER
145303001199 Frigidaire Refrigerator Wiring Harness Clamp
155303305677 Frigidaire Replacement Filter Dryer Filters
16WCI 5303001341
17BRACKET-MTG (4)
18WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
195308000039 Frigidaire Refrigerator Screw
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
23WASHER-COMPR MTG
24CLIP – COMPRESSOR MTG
25218513300 Frigidaire Refrigerator Compressor Mount Grommet
26WCI 5308013663
27COMPRESSOR W/ ELECTRICALS-SERVICE
28A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28PAN-DEFROST DRAIN, ORIG/SVCE COMPR
29Nut,lock `1/4-20 ,drain pan mtg
30PAN RETAINER KIT, SERVICE
31HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
32WIRING HARNESS, COMPRESSOR,
33ACLAMP-CABLE
33WCI 5303001197
34INSULATOR-EVAP, PLASTIC
