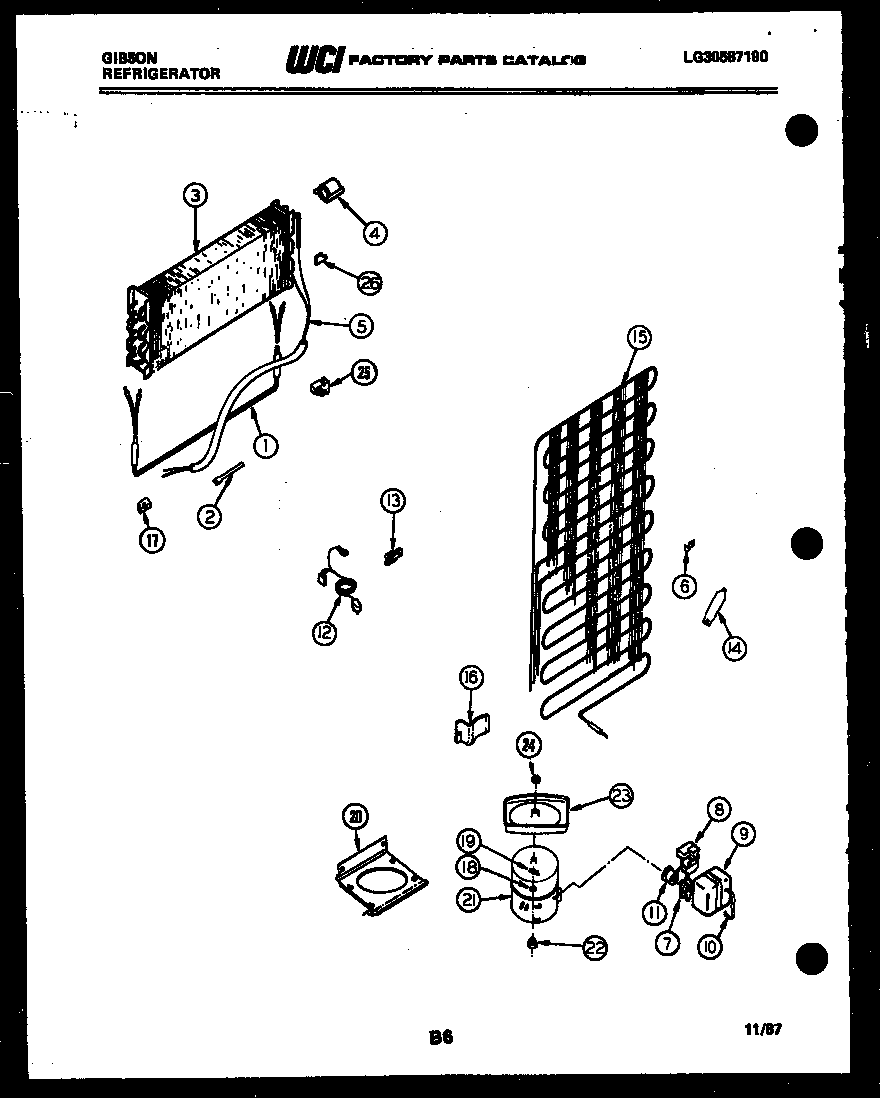

RT17F2WU3A 04 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T10:31:54+00:00RT17F2WU3A 04 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| *56277 | HOT TUBE REPAIR KIT (NON-ILLUSTRATED) |
| 1 | HEATER, DEFROST |
| 2 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 3 | EVAPORATOR |
| 4 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 5 | HEAT-EXCH |
| 6 | CLAMP-TUBE (NON-ILLUSTRATED) |
| 7 | RETAINER, OVERLOAD |
| 8 | WCI G182225-03 |
| 10 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 11 | WCI G176002 |
| 12 | CORD, SERVICE |
| 13 | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 14A | 5304455651 Frigidaire Refrigerator Screw |
| 14 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 14B | WASHER |
| 15 | WCI G178225 |
| 16 | BRACKET-CONDENSER MOUNTING (4) |
| 17 | BLOCK, LEFT SIDE |
| 18 | WASHER, COMPRESSOR MOUNTING (4) |
| 19 | CLIP, COMPRESSOR MOUNTING (4) |
| 20 | PLATE |
| 21 | COMPRESSOR WITH ELECTRICALS |
| 22 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 23 | DEFROST PAN & NUT |
| 24 | NUT, LOCK |
| 25 | BLOCK, EVAPORATOR, RH |
| 26 | PLUG, EVAPORATOR INSULATION BLOCK, R H |
