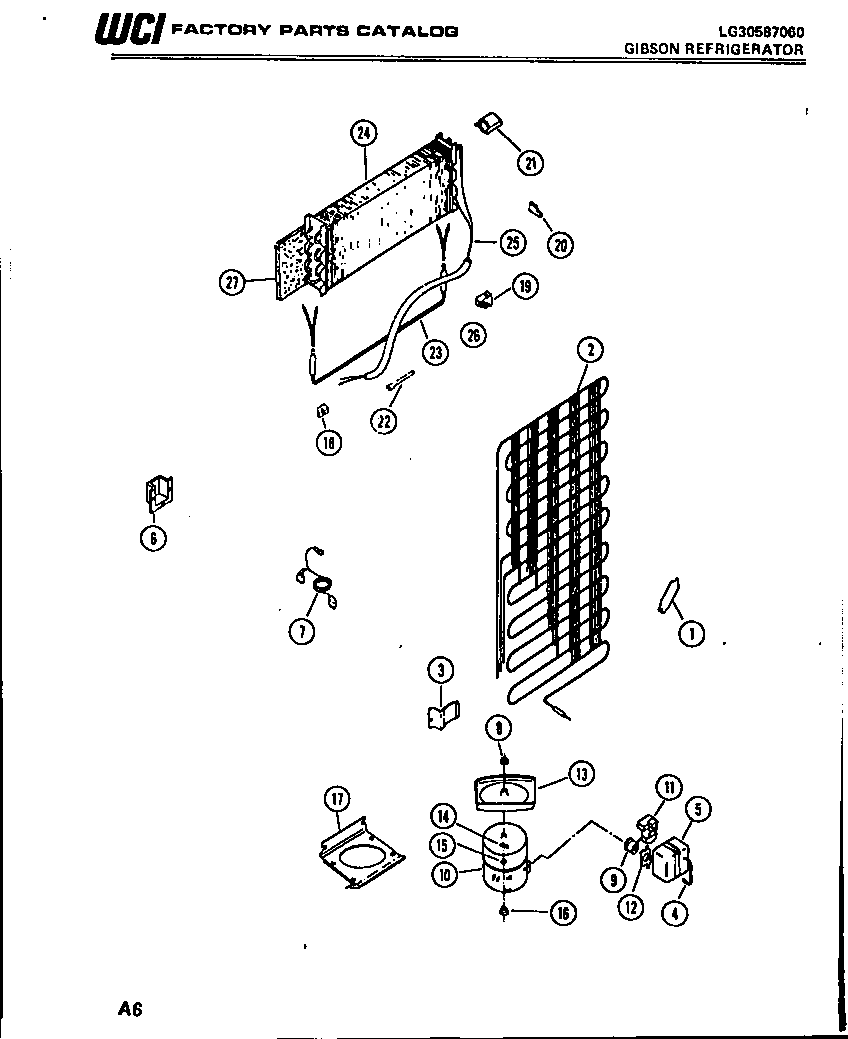

RT17F3DT3B 04 – SYSTEM PARTS

Products

Position	Product
*93570	WCI G189229-07
*93569	HOT TUBE REPAIR KIT
*93571	WCI G182730-01
*93568	HARNESS-COMPRESSOR
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G178225
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6A	CORD, SERVICE
6	WCI G183584
8	NUT, LOCK
9	WCI G185810
10	COMPRESSOR WITH ELECTRICALS
11	WCI G182225-11
12	RETAINER, OVERLOAD
13	DEFROST PAN & NUT
14	CLIP, COMPRESSOR MOUNTING (4)
15	WASHER, COMPRESSOR MOUNTING (4)
16	218513300 Frigidaire Refrigerator Compressor Mount Grommet
17	PLATE
18	WCI G157807
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
23	HEATER, DEFROST
24	EVAPORATOR
25	HEAT, EXCHANGE
26	WCI G125963-68
27	INSULATOR
