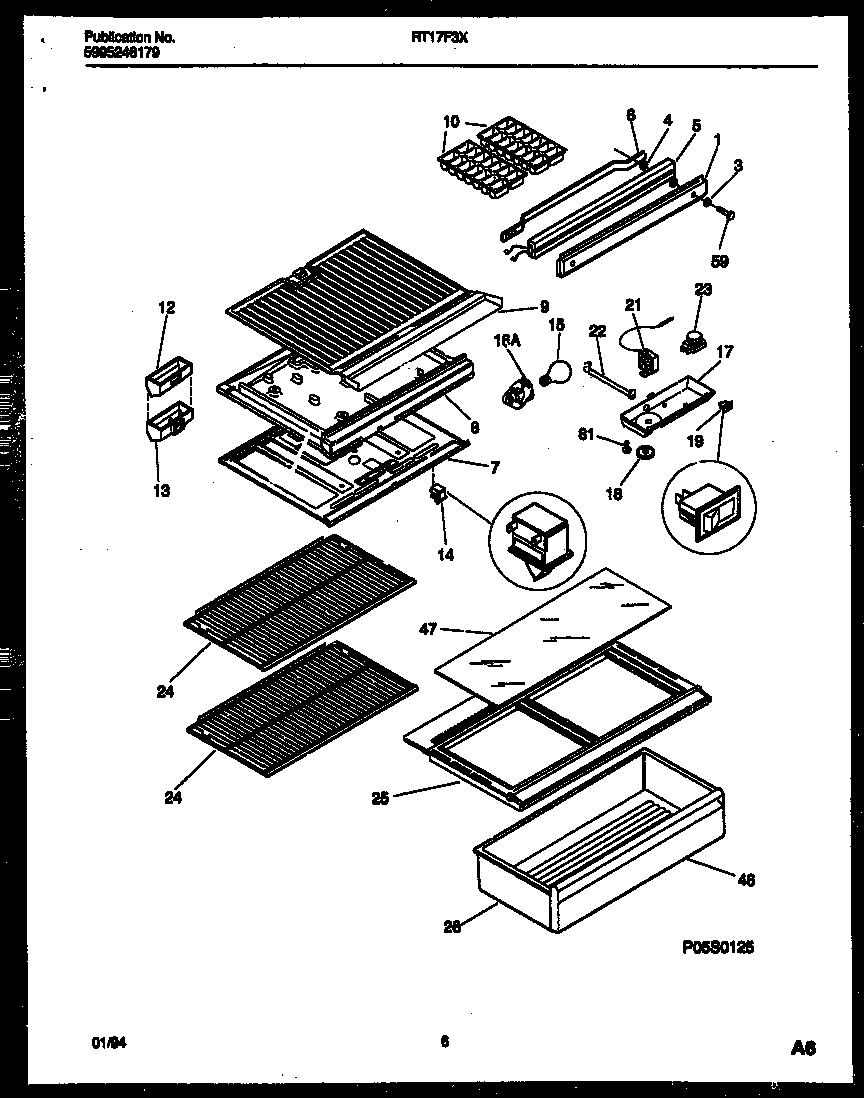

RT17F3DX4C 04 – SHELVES AND SUPPORTS

RT17F3DX4C 04 – SHELVES AND SUPPORTS

Written by

in

RT17F3DX4C 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206125
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 3018900
5WCI 3206120
6WCI 215170801
7WCI 3206185
7AWCI 5303001380
8A3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206186
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13ANUT, ANCHOR (NI)
13BEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
18WCI 5303209251
19WCI 5303207249
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING, WIRE, REFR SECTION
25WCI 3206183
26WCI 5303272527
46WCI 5303272506
47WCI 3206182
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
