RT17F3WT3C 04 – SHELVES AND SUPPORTS

RT17F3WT3C 04 – SHELVES AND SUPPORTS

Written by

in

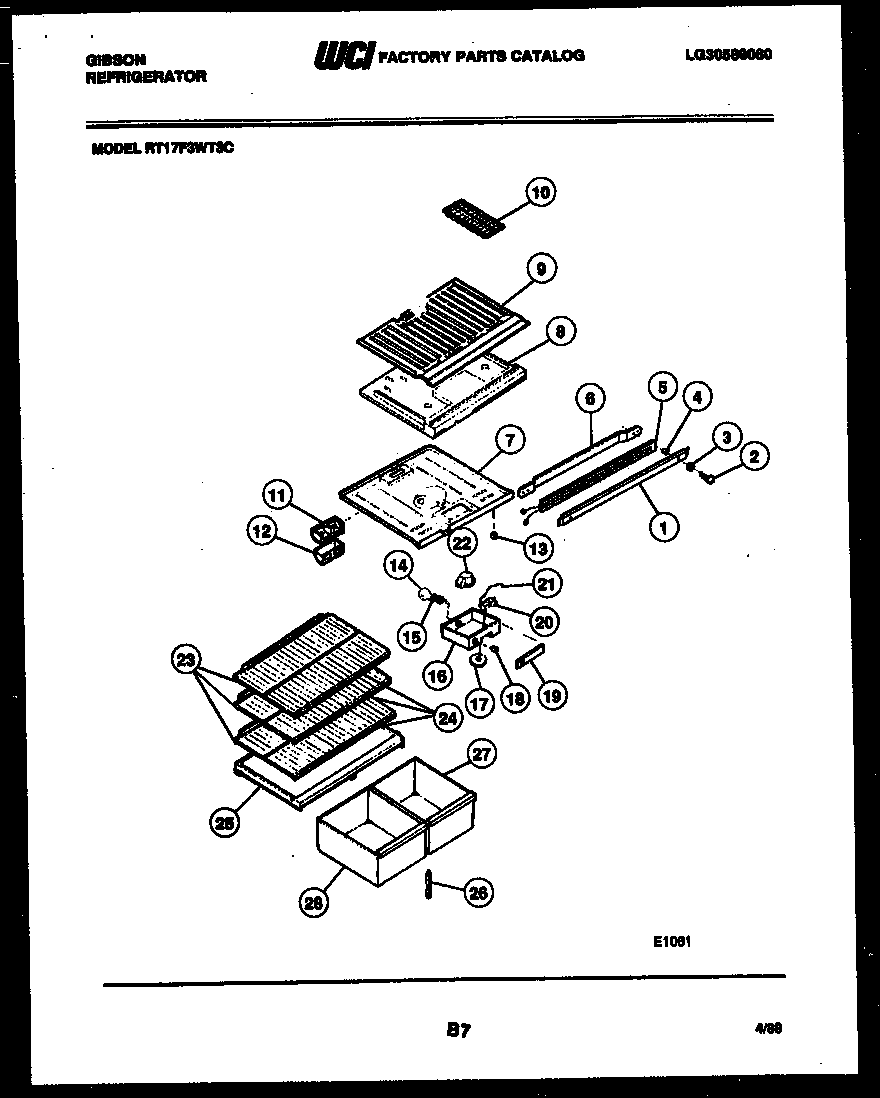

RT17F3WT3C 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3200465
1WCI 3916134
1WCI 3916135
1WCI 3916133
1WCI 3916132
2SCREW, BRACKET MOUNTING (4)
3WASHER (2)
4SPACER (NON-ILLUSTRATED)
5HTR, CENTER RAIL
6CLAMP, MULLION MOUNTING
7ASCREW (5)
7TOP-REFRIGERATOR
8B240396801 Frigidaire Refrigerator Tube Clamp
8DIVIDER, CENTER
8AHARNESS, WIRING
9APAD, FOAM (2)
9BOTTOM, FC
10215667501 Frigidaire Refrigerator Ice Tray Primary
11DEFLECTOR AIR
12WCI G162178
135309918806 Frigidaire Refrigerator Light Switch Door
14316538904 Frigidaire Oven Lamp Light
15SOCKET LIGHT
16A5304455650 Frigidaire Refrigerator Screw
16WCI G176722-03
17KNOB
18WCI G178402-02
19WCI G188379-01
20AWCI G107080
20WCI 3200810
21TUBE
22A5304455649 Frigidaire Refrigerator Screw
22215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23SHELF
24WCI G172410-04
25COVER-CRISPER
26SUPPORT, CRISPER COVER
27PAN-CRISPER
28PAN-SMALL LS
