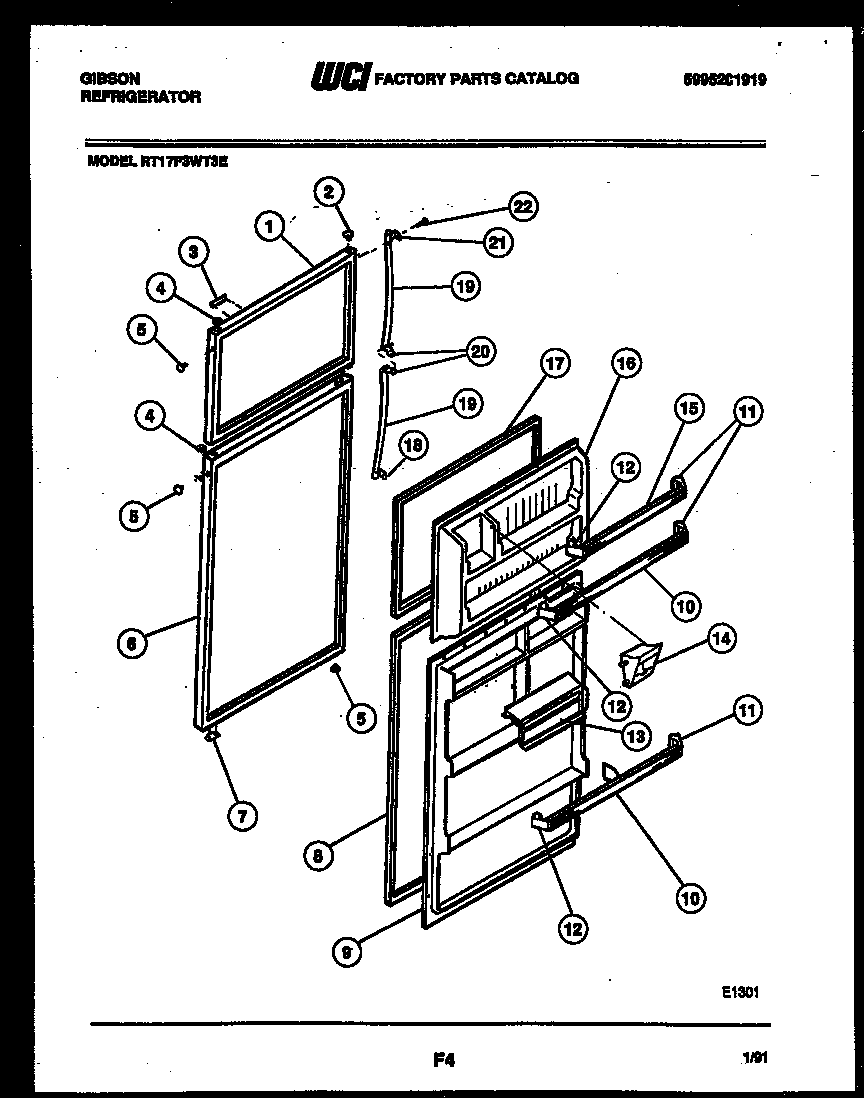

RT17F3WT3E 02 – DOOR PARTS

RT17F3WT3E 02 – DOOR PARTS

Written by

in

RT17F3WT3E 02 – DOOR PARTS

Products

PositionProduct
*37370INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5317857110
1FREEZER DOOR – WHITE
1FREEZER DOOR – ALMOND
1FREEZER DOOR – AVOCADO
1FREEZER DOOR – WHEAT
2PLUG-BUTTON, ALMOND, HINGE BRG HOLE
2PLUG-BUTTON, WHITE, HINGE BRG HOLE
2BUTTON PLUG-COFFEE
2BUTTON-WHEAT
2BUTTON-AVOCADO
3ALABEL UPPER
3NAMEPLATE
3BLABEL-LOWER
3CTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
4BEARING-HINGE
5BUTTON-AVOCADO
5BUTTON-WHEAT
5BUTTON PLUG-COFFEE
5240494001 Frigidaire Refrigerator Plug Button
5PLUG-BUTTON, ALMOND, HANDLE/DR STOP
6PANEL-OUTER-COFFEE
6WCI 5317869411
6WCI 5317869409
6WCI 5317869408
6REFRIGERATOR DOOR-WHITE
7ADOOR STOP, REFR SECTION
7WCI 5308000255
8218730603 Frigidaire Door Gasket
9WCI G187557-02
10WCI G161019-57
11WCI 5317828702
12SUPPORT RH (4)
13WCI G187490-01
14DISPENSER-JUICE CAN
15RACK-DOOR
16A5304455651 Frigidaire Refrigerator Screw
16PANEL-FREEZER INNER DOOR
17WCI 5303001399
18BOTTOM HANDLE END CAP
19WCI 5317049526
20WCI 5303001296
21WCI 5303001297
22WCI 5308011745
