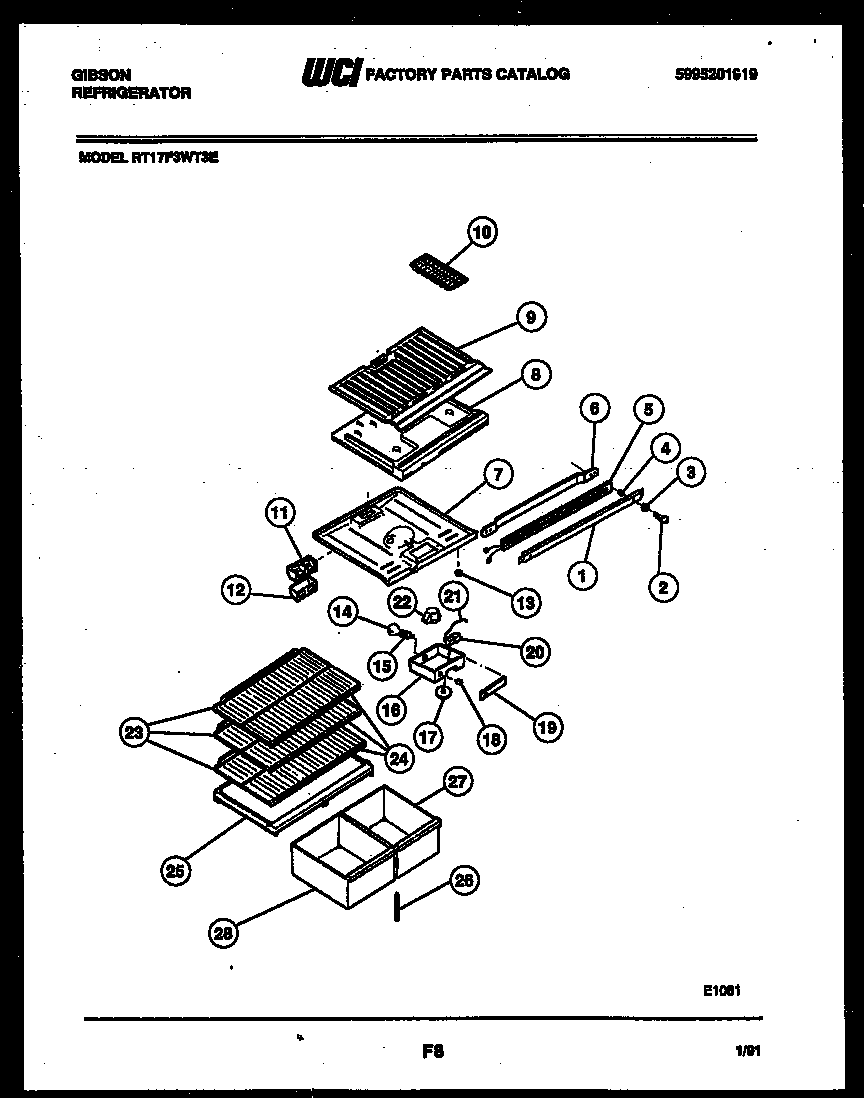

RT17F3WT3E 04 – SHELVES AND SUPPORTS

RT17F3WT3E 04 – SHELVES AND SUPPORTS

Written by

in

RT17F3WT3E 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3916132
1WCI 5303200465
1WCI 3916133
1WCI 3916135
1WCI 3916134
2WCI 5308012258
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5308017408
6WCI 5308003604
7TOP PANEL-REFR, W/ SNAP BUSHING
7AWCI 5303001380
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8B5308000133 Frigidaire Refrigerator Clamp
8WCI 5308009750
9AWCI 08000185
9WCI 5303001537
10215667501 Frigidaire Refrigerator Ice Tray Primary
11DEFLECTOR-AIR
12COVER – AIR DEFLECTOR
135309918806 Frigidaire Refrigerator Light Switch Door
14316538904 Frigidaire Oven Lamp Light
15SOCKET-LIGHT/LAMP
16AWCI 5303001260
16WCI 5317672203
17WCI 5308010011
18SWITCH-ENERGY SAVER, SLIDE TYPE
19WCI G188379-01
20WCI 5303200810
21TUBE
22215846604 Frigidaire Refrigerator Defrost Timer
22A5304455649 Frigidaire Refrigerator Screw
23SHELF
24TRIM-SHELF
25COVER-CRISPER PAN
26SUPPORT-CRISPER CVR, ADJUSTABLE
27PAN-CRISPER
28PAN-SMALL LS
