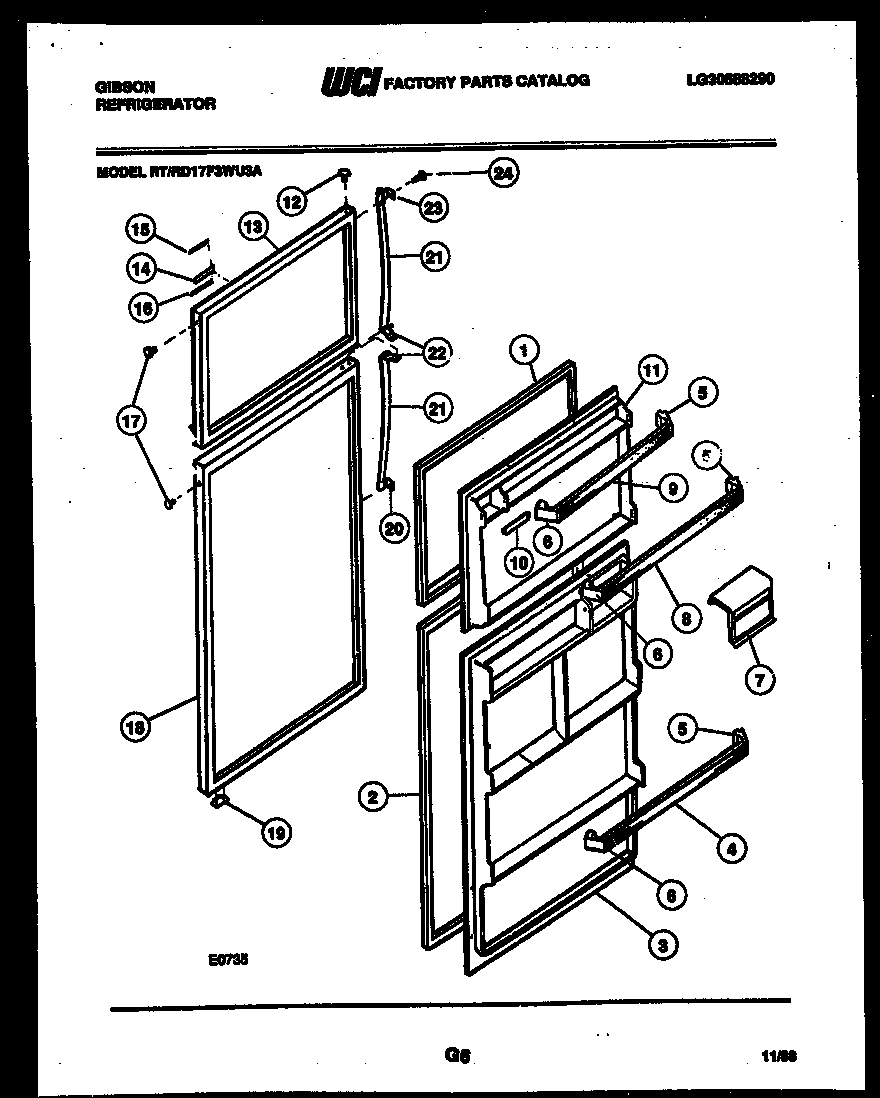

RT17F3WU3A 02 – DOOR PARTSadmin2025-04-26T10:33:48+00:00RT17F3WU3A 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *11814 | WCI G89643 |
| 1 | GASKET-FREEZER |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI G187557-02 |
| 5 | SUPPORT, RACK, RH, (PC) (2) |
| 6 | SUPPORT, RACK, LH (PC) (2) |
| 7 | WCI G187490-01 |
| 8 | WCI G161019-57 |
| 9 | WCI G161019-58 |
| 10 | RACK-JUICE CAN |
| 11A | 5304455651 Frigidaire Refrigerator Screw |
| 11 | PANEL INTERIOR DOOR |
| 12 | WCI G169332-09 |
| 12 | WCI G169332-08 |
| 12 | WCI G169332-11 |
| 12 | WCI G169332-01 |
| 12 | WCI G169332-10 |
| 13A | WCI 183138 |
| 13 | PANEL, OUTER, WHEAT |
| 13 | PANEL, OUTER, AVOCADO |
| 13 | PANEL, OUTER, WHITE |
| 13 | PANEL, OUTER, ALMOND |
| 13 | PANEL, OUTER, COFFEE |
| 14 | NAMEPLATE |
| 14A | TAPE-FRAME MOUNTING (NON-ILLUSTRATED) |
| 15 | LABEL, UPPER |
| 16 | LABEL-LOWER |
| 17 | WCI G162977-11 |
| 17 | WCI G162977-08 |
| 17 | WCI G162977-09 |
| 17 | WCI G162977-10 |
| 17 | 240494001 Frigidaire Refrigerator Plug Button |
| 18 | PANEL, OUTER, AVOCADO |
| 18A | BEARING, HINGE (3) |
| 18 | PANEL, OUTER, COFFEE |
| 18 | PANEL, OUTER, WHEAT |
| 18 | PANEL, OUTER, ALMOND |
| 18 | PANEL, OUTER, WHITE |
| 19 | STOP, DOOR. PC & FC (2) |
| 20 | WCI G179801 |
| 21 | WCI G170495-24 |
| 22 | WCI G187329-01 |
| 23 | WCI G179800 |
| 24 | WCI G185566 |
