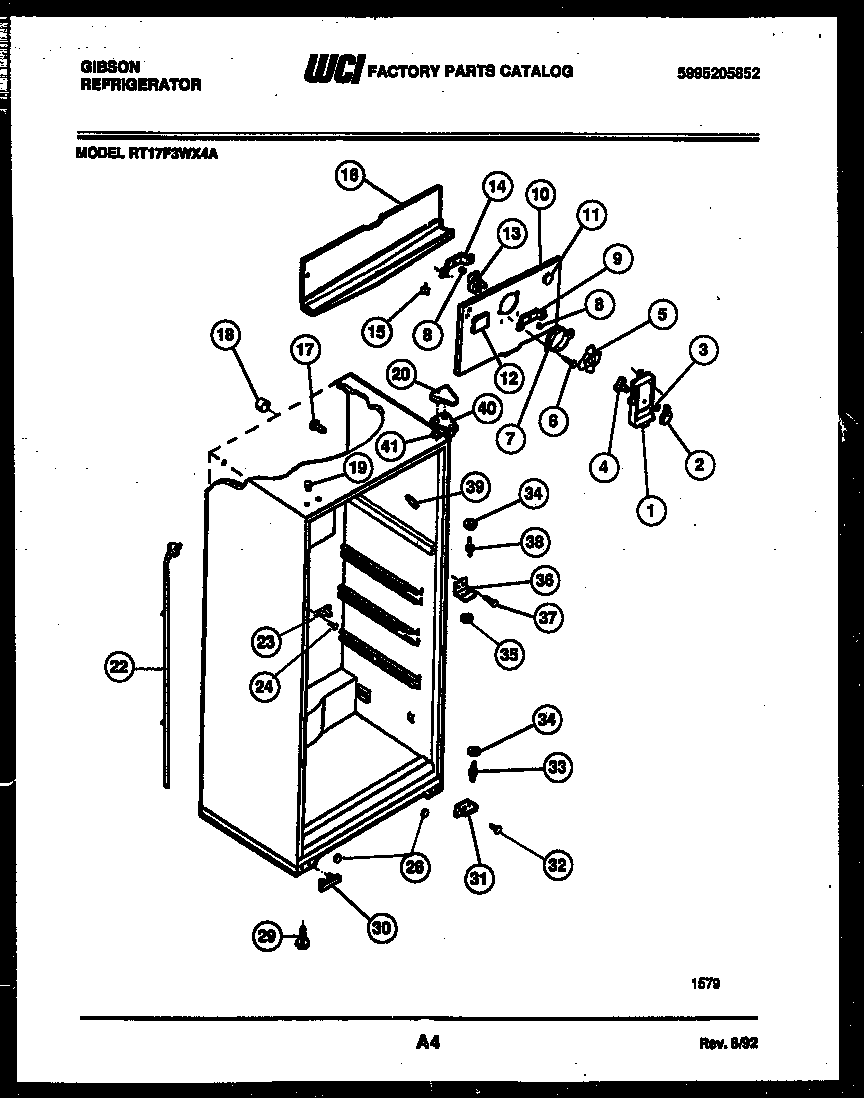

RT17F3WX4A 03 – CABINET PARTS

Products

Position	Product
*36729	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*36729	SKID PAD, REAR CAB BASE (NI)
*36729	PLUG, BUTTON, CABINET LINER (NI)
*36729	WCI 5303207353
1	WCI 5303272512
1A	WCI 5303272493
2	WCI 3206381
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10B	5304455650 Frigidaire Refrigerator Screw
10A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 3206119
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303272494
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
15A	5304455651 Frigidaire Refrigerator Screw
15	WCI 5308000107
16	WCI 3206146
17	SUPPORT-COIL COVER
18	TUBE-RUBBER
19	BUTTON-HINGE-WHEAT
19	PLUG-BUTTON, WHITE
19	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
20	COVER-UPPER HINGE, WHEAT
20	WCI 3206101
20	WCI 3206105
22	WCI 5303269702
23	WCI 5308000056
24	WCI 5303001361
26	PLUG-BUTTON
29	SCREW-LEVELING, (2)
30	WCI 3206135
31	WCI 3206136
32	241710601 Frigidaire Refrigerator Screw
33	5303001321 Frigidaire Refrigerator Lower Hinge Pin
34	WASHER, .34 X .62 X .05, NYLON
35	WCI 5308000186
36	BRACKET-CTR HINGE
37	SCREW - MULLION (2)
38	WCI 5308000184
39	WCI 5303202338
39	TRIM-CABINET CORNER, WHITE
39	TRIM-CABINET CORNER, ALMOND
40	WCI 3206100
41	SHIM - UPPER HINGE
