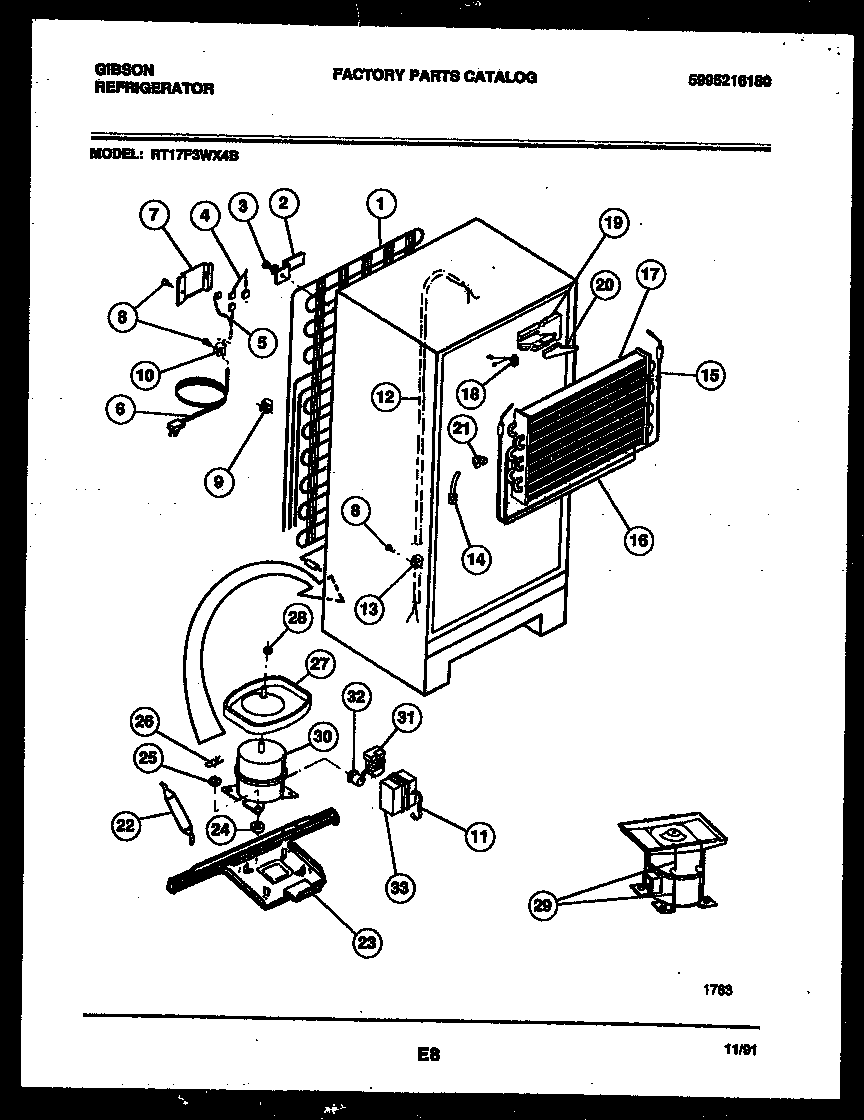

RT17F3WX4B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT17F3WX4B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*36346WCI 3916557
*363465304455852 Frigidaire Refrigerator Screw
1WCI 5303001341
2BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
4WCI 3018900
5WIRING HARNESS-COMPRESSOR
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303006412 Frigidaire Refrigerator Cover Mounting Strap
12WCI 5308000728
135308000133 Frigidaire Refrigerator Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15WCI 5308009754
16INSULATOR-EVAP, PLASTIC
17EVAPORATOR
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19INSULATION BLOCK, RH
20INSULATION PLUG, RH
21INSULATION BLOCK, LH
225303305677 Frigidaire Replacement Filter Dryer Filters
23WCI 3206126
23A5304500008 Frigidaire Oven Screw
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP - COMPRESSOR MTG
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30COMPRESSOR W/ ELECTRICALS-SERVICE
31216594300 Frigidaire Refrigerator Starter
32WCI 5303270406
