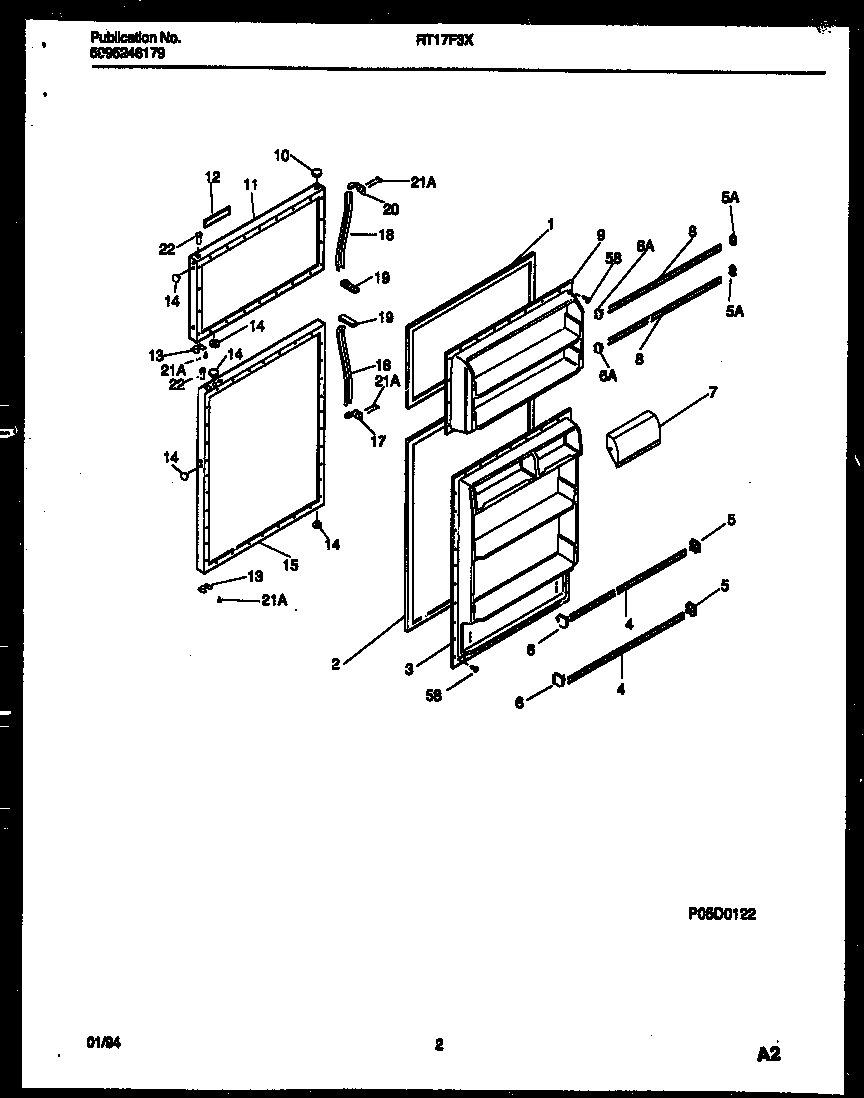

RT17F3WX4C 02 – DOOR PARTS

RT17F3WX4C 02 – DOOR PARTS

Written by

in

RT17F3WX4C 02 – DOOR PARTS

Products

PositionProduct
*67629INSULATION
*67629WCI 5316898101
*67629WCI 5316898111
1WCI 5303001399
2218730603 Frigidaire Door Gasket
3WCI 5303272501
4WCI 5303272502
5WCI 5303272503
5AWCI 5303272498
6AWCI 5303272499
6WCI 5303272504
7AWCI 5303001380
7WCI 5303272500
8WCI 5303272497
9WCI 5303272496
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303916739
12NAMEPLATE ASSY
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303916734
17BOTTOM HANDLE END CAP
18WCI 5303272495
19WCI 5303001296
20WCI 5303001297
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
