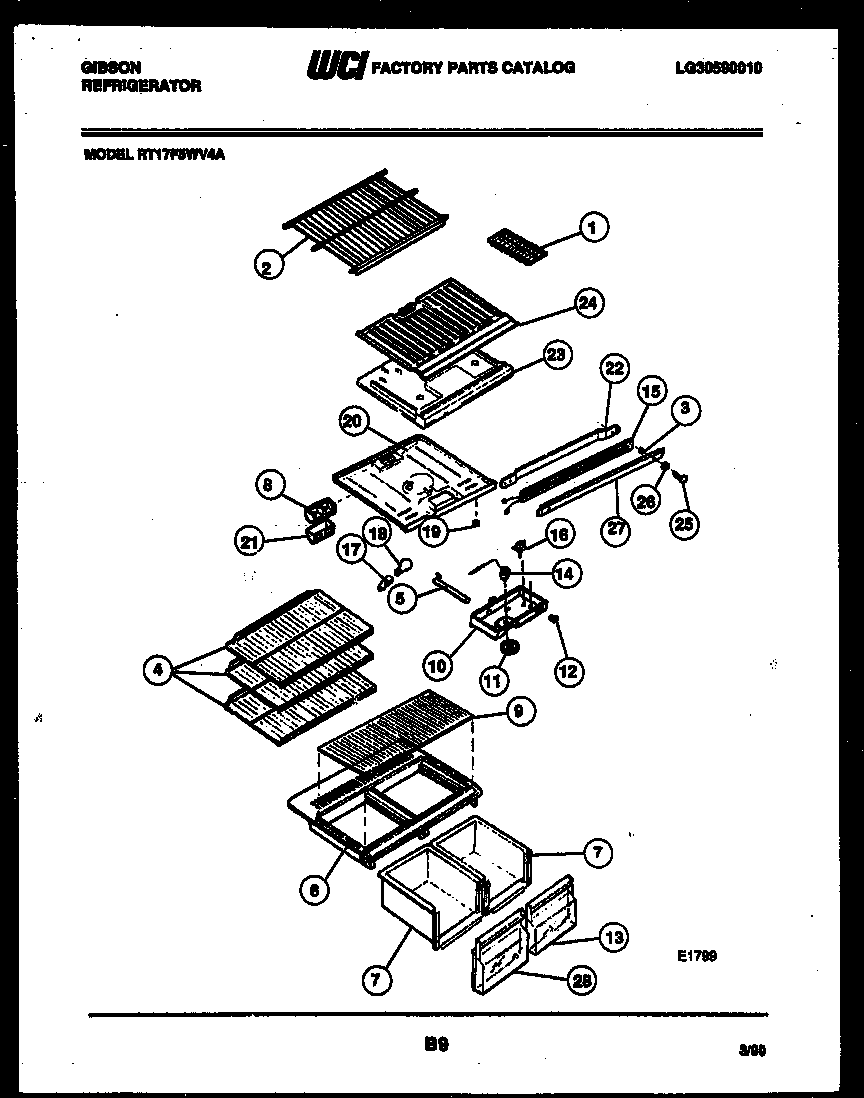

RT17F5WV4A 04 – SHELVES AND SUPPORTS

RT17F5WV4A 04 – SHELVES AND SUPPORTS

Written by

in

RT17F5WV4A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI 5317705910
2AEND CAP-SHELF,PROTECTOR
3WCI 5303206753
4WCI 5303209057
5WCI 3018891
6WCI 3206183
7PAN – CRISPER
8WCI 3204206
9WCI 3206182
10A5304455650 Frigidaire Refrigerator Screw
10WCI 5303206574
11WCI 5303201777
12SWITCH-ROCKER
13WCI 5303209058
14AWCI 5303001260
14WCI 5303018894
15WCI 3206120
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20AWCI 5303001380
20WCI 3206185
21COVER – AIR DEFLECTOR
22WCI 5303207247
23AWCI 3206186
23BWCI 3018900
233205266 Frigidaire Refrigerator Edge Protector
24WCI 3206187
25SCREW – MULLION (2)
26WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
27WCI 3206122
27WCI 3206125
27WCI 3206123
27WCI 3206121
27WCI 3206124
28WCI 5303209059
