RT17F5YX4B 05 – SHELVES AND SUPPORTS

RT17F5YX4B 05 – SHELVES AND SUPPORTS

Written by

in

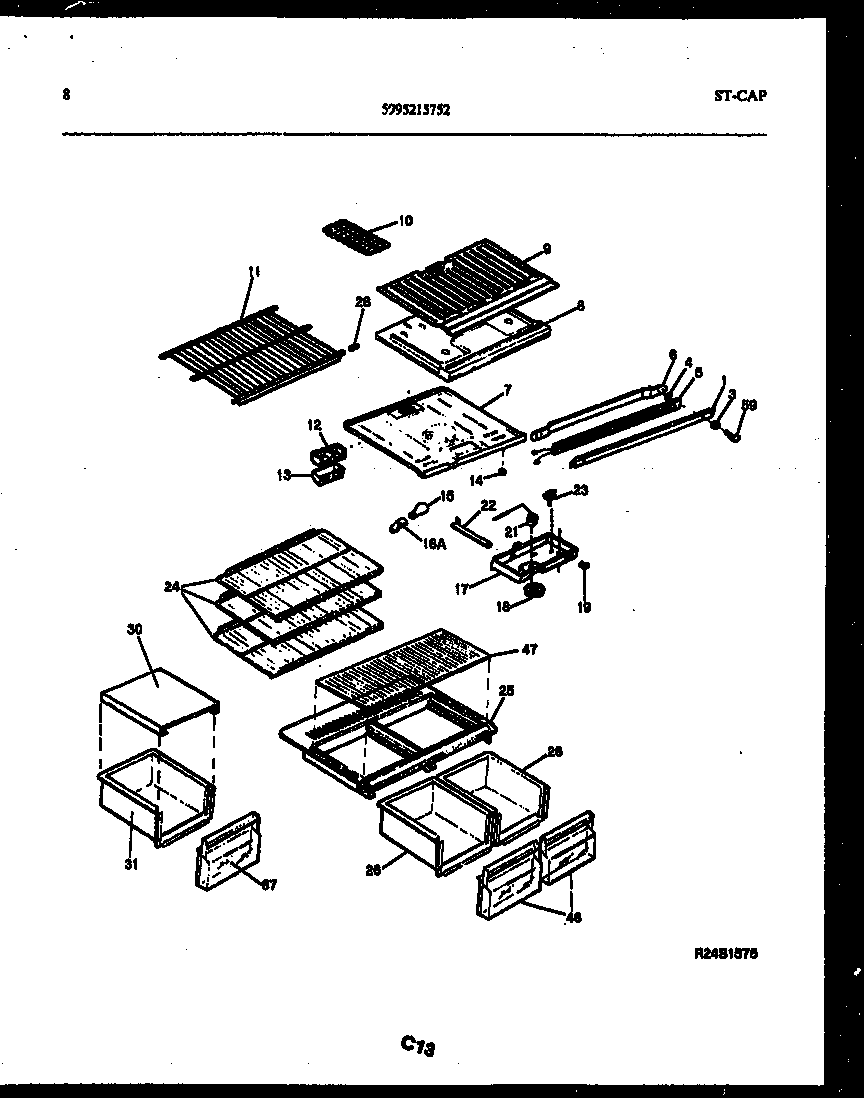

RT17F5YX4B 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206123
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4SPACER-MULLION MTG, STEEL
5WCI 3206120
6WCI 5308003604
7AWCI 5303001380
7WCI 3206185
8AWCI 3018900
8WCI 3206186
8B3205266 Frigidaire Refrigerator Edge Protector
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
17A5304455650 Frigidaire Refrigerator Screw
18WCI 5303209251
19WCI 5303272508
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, WIRE, REFR SECTION
25WCI 3206183
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
