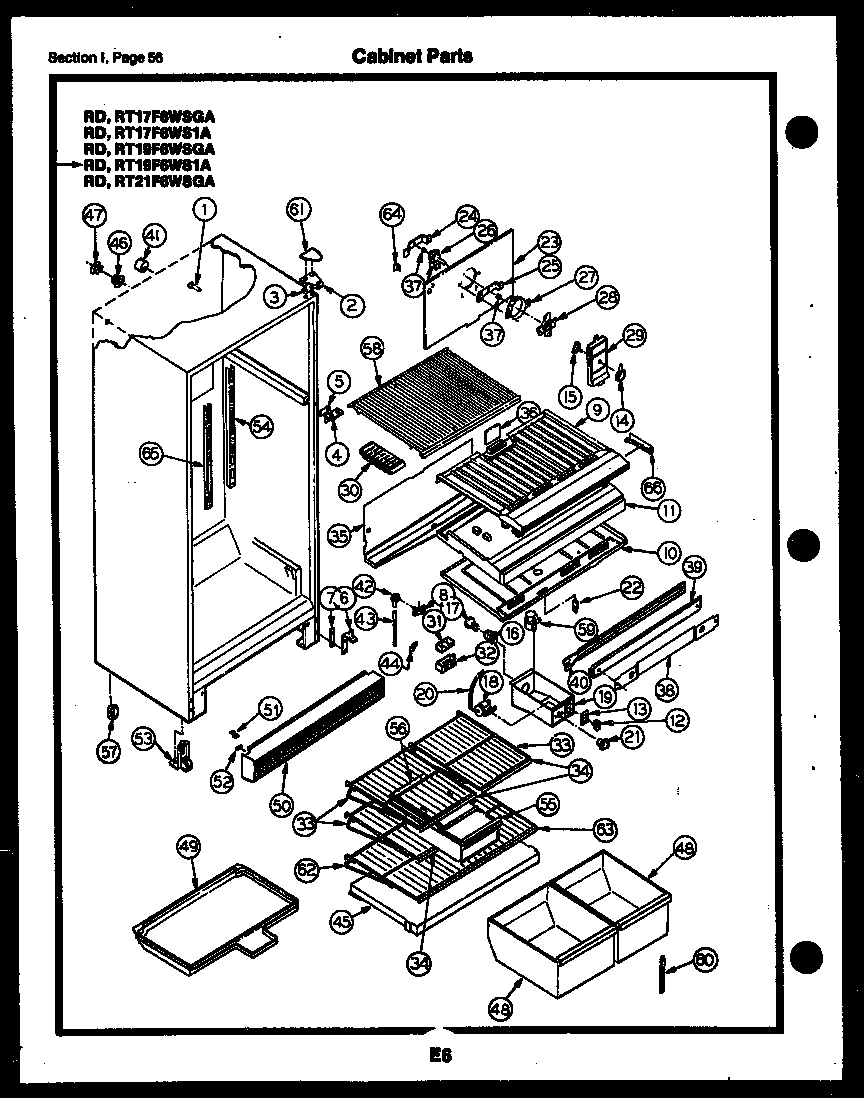

RT17F6WSGA 28 – CABINET PARTS

Products

Position	Product
26	5300158289 Frigidaire Evaporator Fan Motor
27A	NUT, ORIFICE (2)
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	WCI G162511-14
29A	LABEL - LOWER
29B	LABEL - UPPER
30	215667501 Frigidaire Refrigerator Ice Tray Primary
31	WCI G162178
32	DEFLECTOR AIR
33	WCI G177390-11 (4)
34A	WCI G138399 (3)
34	WCI G172410-05 (4)
35	WCI G170071
36	PAD, FOAM (2)
37	G187559 Frigidaire Refrigerator Bushing
38	STRAP, MULLION MOUNTING
39	WCI G162051
40	WCI G177254
41	TUBE, INSULATION (2)
42	ELBOW, DRAIN
43	WCI G155529-04
44	240396801 Frigidaire Refrigerator Tube Clamp
44A	5304455651 Frigidaire Refrigerator Screw
45A	WCI G180108-02
45	WCI G161901-02
46	WCI G174733
47	WCI G174734
48A	WCI G179706-33
48	WCI G179706-32
49	PAN, DEFROST
50	WCI G161904-01
51	WCI G162994
52	PLUG - LOWER GRILLE
53A	BOLT, HOUSING TO FRONT RAIL (2)
53	ROLLER ASSEMBLY - FRONT (2)
54A	5304455852 Frigidaire Refrigerator Screw
54	CHANNEL, SHELF (2)
55	MEAT PAN
56	WCI G177106-01
57B	NUT, DAMPER MOUNTING
57A	WCI G162809
57	ROLLER (2)
58A	WCI G163105 (4)
58B	WCI G163104 (4)
58	WCI G163002-07
