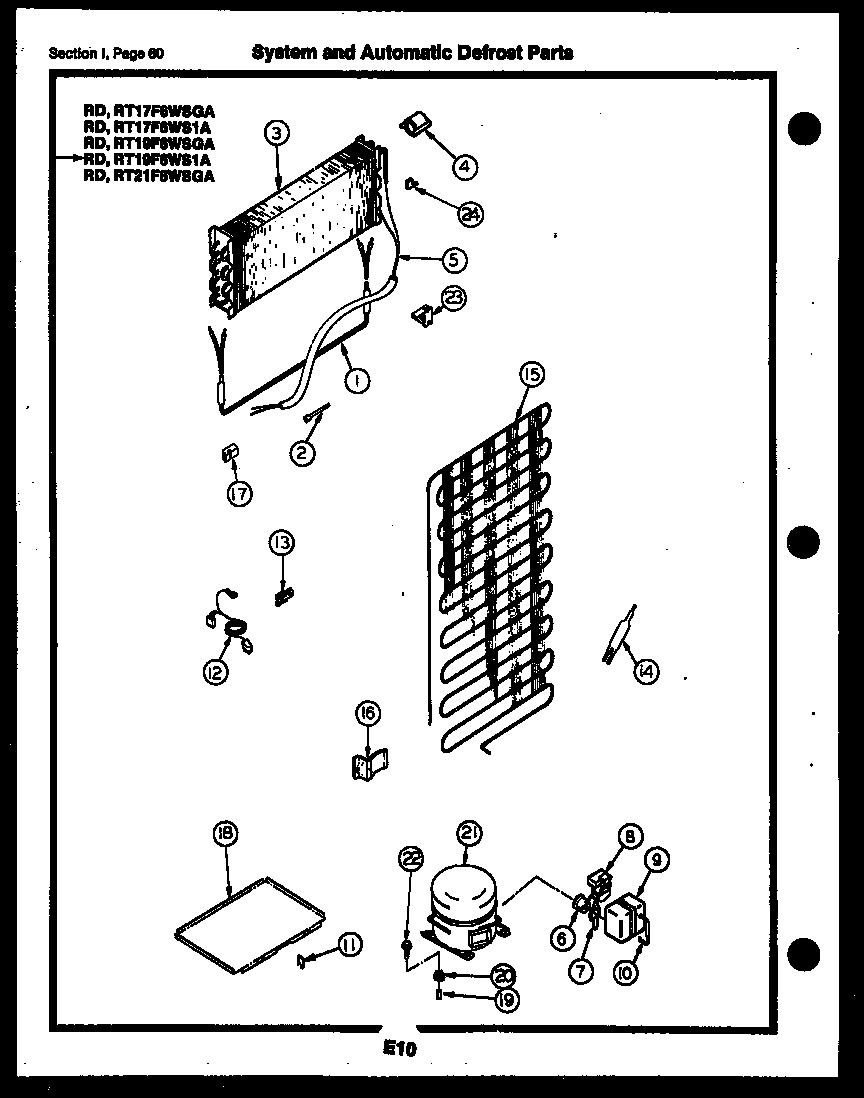

RT17F6WSGA 30 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*22361	WCI G176210
1	5317842502 Frigidaire Defrost Heater
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3	EVAPORATOR
4	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5	HEAT EXCHANGER (NON-ILLUSTRATED)
6	OVERLOAD
7	CLIP, OVERLOAD
8	WCI G150618-32
10	5303006412 Frigidaire Refrigerator Cover Mounting Strap
11	BRACKET, DRAIN TUBE
12	CORD, SERVICE
13A	5304455651 Frigidaire Refrigerator Screw
13	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
14	5303305677 Frigidaire Replacement Filter Dryer Filters
16	BRACKET-CONDENSER MOUNTING (4)
16A	5308000039 Frigidaire Refrigerator Screw
17	WCI G163099
18	DEFROST PLATE
19	SLEEVE COMP MTG (3)
20	218513300 Frigidaire Refrigerator Compressor Mount Grommet
21	COMPRESSOR WITH ELECTRICALS
22	SCREW - 1/4-20 (3) COMP. MTG.
23	BLOCK, EVAPORATOR, LH
24	PLUG - EVAP. INS. L.H.
