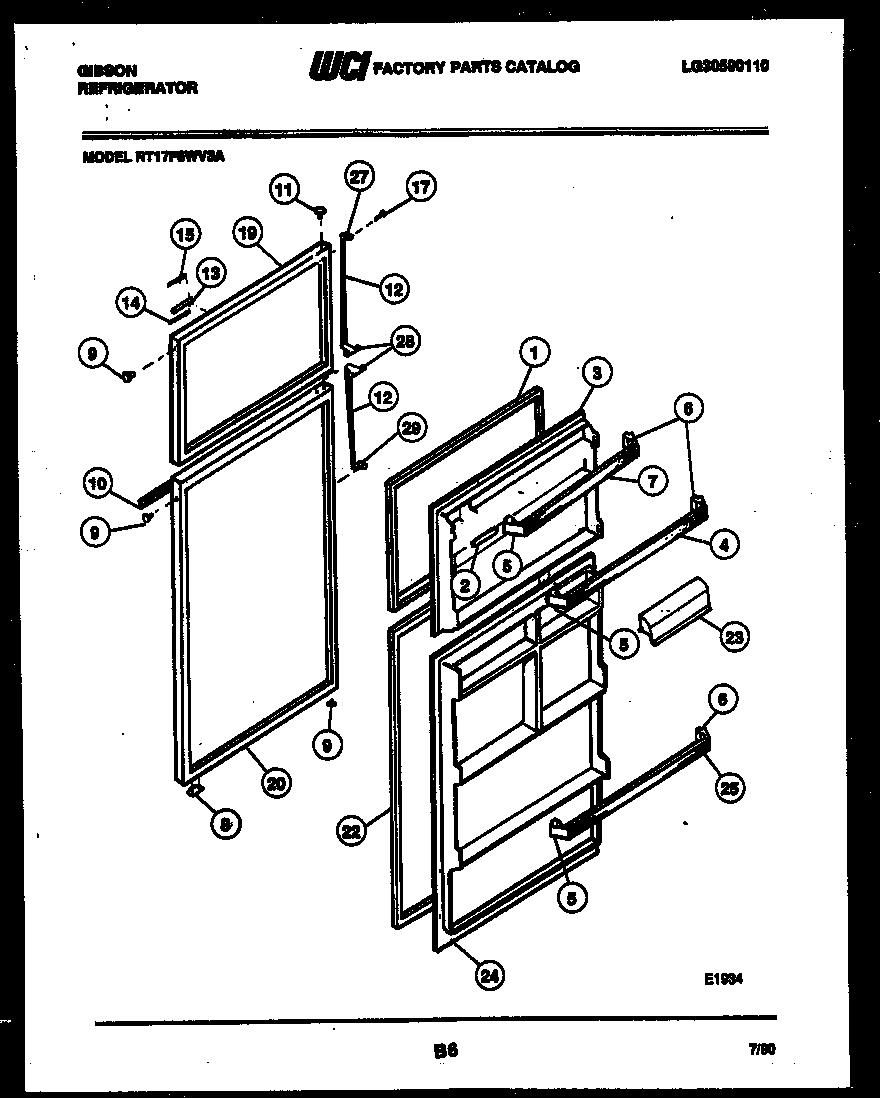

RT17F6WV3A 02 – DOOR PARTS

RT17F6WV3A 02 – DOOR PARTS

Written by

in

RT17F6WV3A 02 – DOOR PARTS

Products

PositionProduct
*32994INSULATION-BULK (NON-ILLUSTRATED)
*32994SNUGGER-SHELF (2) (NON-ILLUSTRATED)
1WCI 5303001399
2DISPENSER-JUICE CAN
3PANEL-FREEZER INNER DOOR
5SUPPORT RH (4)
6WCI 5317828702
7RACK-FRZR UPPER
8WCI 5308000255
9240494001 Frigidaire Refrigerator Plug Button
9BUTTON-WHEAT
9BUTTON-AVOCADO
9BUTTON PLUG-COFFEE
9PLUG-BUTTON, ALMOND, HANDLE/DR STOP
10WCI 3204708
11PLUG-BUTTON, WHITE, HINGE BRG HOLE
11BUTTON-WHEAT
11BUTTON PLUG-COFFEE
11PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11BUTTON-AVOCADO
12HANDLE-FRZR DOOR
13ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13NAMEPLATE
14LABEL-LOWER
15LABEL UPPER
17WCI 5308011745
19FREEZER DOOR – AVOCADO
19FREEZER DOOR – WHEAT
19FREEZER DOOR – WHITE
19WCI 5317857110
19FREEZER DOOR – ALMOND
20REFRIGERATOR DOOR-ALMD
20REFRIGERATOR DOOR-COFFEE
20REFRIGERATOR DOOR-AVOC
20REFRIGERATOR DOOR-WHEAT
20REFRIGERATOR DOOR-WHITE
20ABEARING-HINGE
22218730603 Frigidaire Door Gasket
23DAIRY DOOR-SMALL
24A218843801 Frigidaire Refrigerator Screw
24WCI G187557-02
25RACK-REFR/FRZR (3)
27WCI 5303001297
28WCI 5303001296
29BOTTOM HANDLE END CAP
