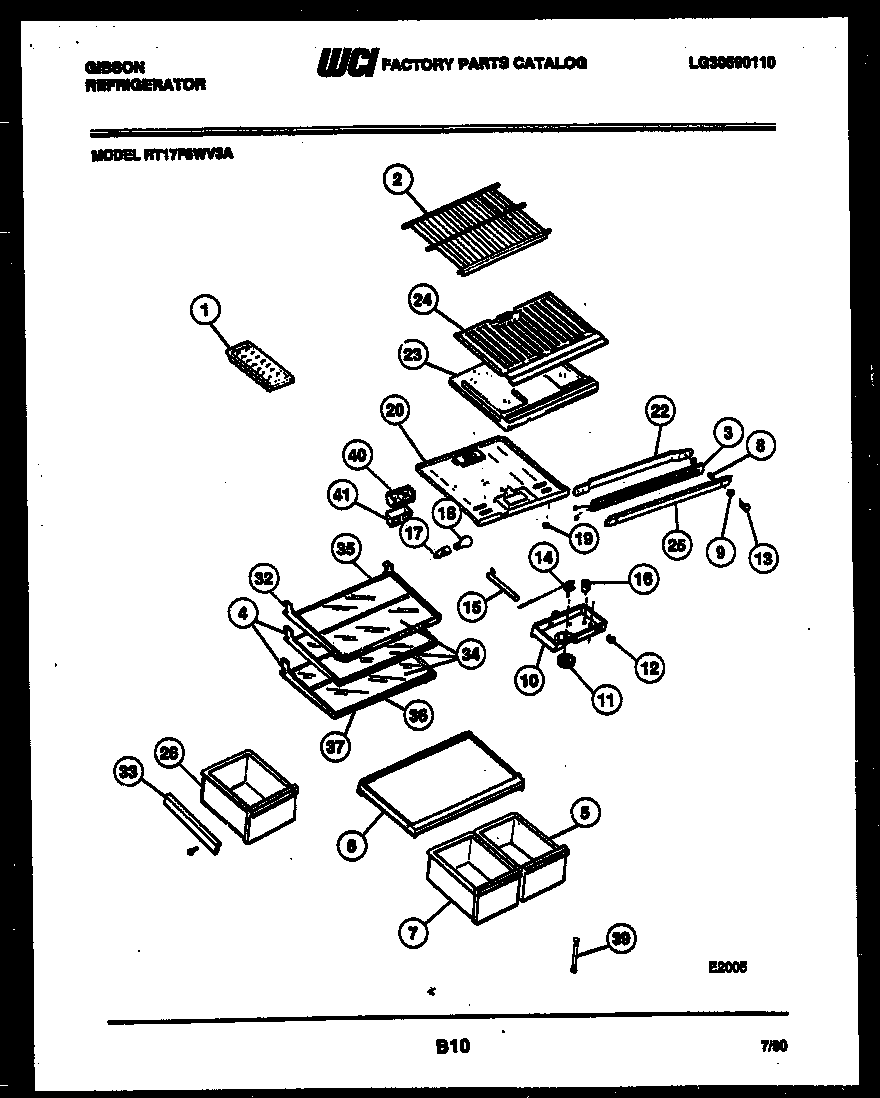

RT17F6WV3A 04 – SHELVES AND SUPPORTS

RT17F6WV3A 04 – SHELVES AND SUPPORTS

Written by

in

RT17F6WV3A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI 5317705910
2AEND CAP-SHELF,PROTECTOR
2B5304509705 Frigidaire Refrigerator Grommet
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3WCI 5308017408
4FRAME-CANTILEVER (2)
5WCI 5349001537
6AGASKET-COVER
6COVER-CRISPER PAN
7PAN-CRISPER-LS
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10A5304455650 Frigidaire Refrigerator Screw
10WCI 5303206574
11WCI 5303201777
12SWITCH-ROCKER
13WCI 5308012258
14WCI 5303018894
14AWCI 5303001260
15RAIL-OFFSET LH
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20AWCI 5303001380
20TOP PANEL-REFR
22WCI 5308003604
23WCI 5303018899
23AWCI 3018900
23B3205266 Frigidaire Refrigerator Edge Protector
24WCI 5303001537
25WCI 3916135
25WCI 3916133
25WCI 3916132
25WCI 5303200465
25WCI 5303916134
26WCI G187181-01
32WCI 5303210995
33AHANGER-PAN RH (NON-ILLUSTRATED)
33HANGER-PAN LH
33BWCI 08014528
34WCI 5303210993
34ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
35WCI 3205268
36PANEL-BOTTOM
36AWCI 5303210996
37WCI 5303210994
39SUPPORT-CRISPER CVR, ADJUSTABLE
40WCI 3204206
41COVER – AIR DEFLECTOR
