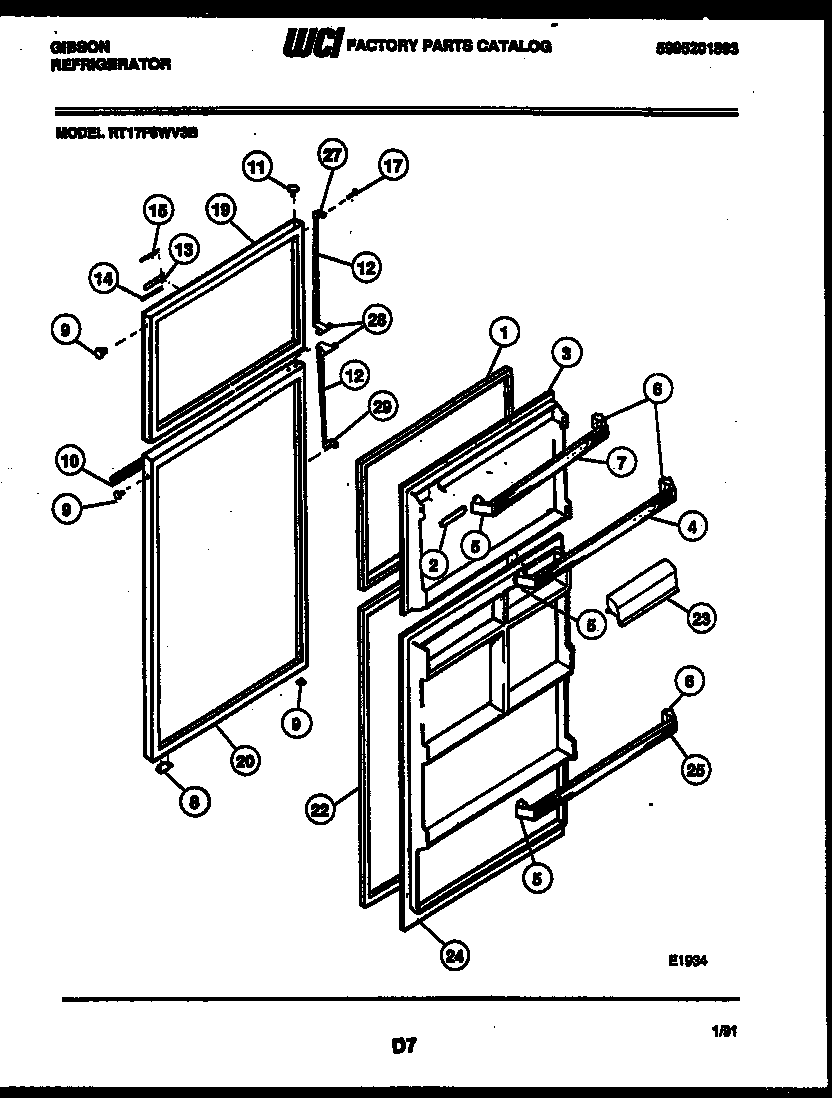

RT17F6WV3B 02 – DOOR PARTS

Products

Position	Product
*35358	INSULATION-BULK (NON-ILLUSTRATED)
*35358	SNUGGER-SHELF (2) (NON-ILLUSTRATED)
1	WCI 5303001399
2	DISPENSER-JUICE CAN
3	PANEL-FREEZER INNER DOOR
5	SUPPORT RH (4)
6	WCI 5317828702
7	RACK-FRZR UPPER
8	WCI 5308000255
8A	DOOR STOP, REFR SECTION
9	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
9	BUTTON PLUG-COFFEE
9	BUTTON-AVOCADO
9	BUTTON-WHEAT
9	240494001 Frigidaire Refrigerator Plug Button
10	WCI 3204708
11	BUTTON-WHEAT
11	BUTTON-AVOCADO
11	BUTTON PLUG-COFFEE
11	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
12	WCI 5317049526
13	NAMEPLATE
14	LABEL-LOWER
15	LABEL UPPER
17	WCI 5308011745
19	FREEZER DOOR - AVOCADO
19	FREEZER DOOR - WHEAT
19	WCI 5317857110
19	FREEZER DOOR - ALMOND
19	FREEZER DOOR - WHITE
20	REFRIGERATOR DOOR-WHITE
20	REFRIGERATOR DOOR-AVOC
20	REFRIGERATOR DOOR-WHEAT
20	REFRIGERATOR DOOR-COFFEE
20A	BEARING-HINGE
20	REFRIGERATOR DOOR-ALMD
22	218730603 Frigidaire Door Gasket
23	DAIRY DOOR-SMALL
24A	5304455651 Frigidaire Refrigerator Screw
24	WCI G187557-02
25	RACK-REFR/FRZR (3)
27	WCI 5303001297
28	WCI 5303001296
29	BOTTOM HANDLE END CAP
