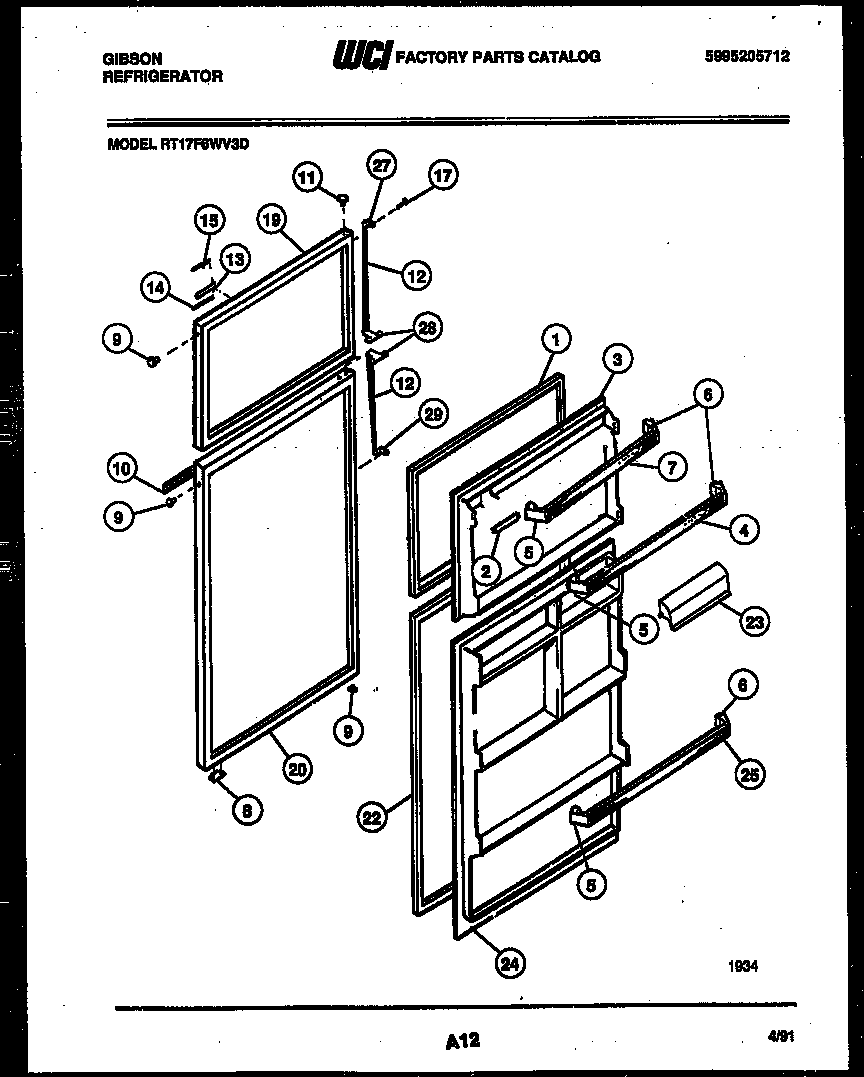

RT17F6WV3D 02 – DOOR PARTS
Written by
in
RT17F6WV3D 02 – DOOR PARTS
Products
Position
Product
*36806
SNUGGER-SHELF (2) (NON-ILLUSTRATED)
*36806
INSULATION-BULK (NON-ILLUSTRATED)
1
WCI 5303001399
2
DISPENSER-JUICE CAN
3
PANEL-FREEZER INNER DOOR
5
SUPPORT RH (4)
6
WCI 5317828702
7
RACK-FRZR UPPER
8A
DOOR STOP, REFR SECTION
8
WCI 5308000255
9
240494001 Frigidaire Refrigerator Plug Button
9
BUTTON-WHEAT
9
PLUG-BUTTON, ALMOND, HANDLE/DR STOP
10
WCI 3204708
11
BUTTON-WHEAT
11
PLUG-BUTTON, WHITE, HINGE BRG HOLE
11
PLUG-BUTTON, ALMOND, HINGE BRG HOLE
12
WCI 5317049526
13
NAMEPLATE
14
LABEL-LOWER
15
LABEL UPPER
17
WCI 5308011745
19
FREEZER DOOR – ALMOND
19
FREEZER DOOR – WHEAT
19
FREEZER DOOR – WHITE
20
REFRIGERATOR DOOR-WHEAT
20
REFRIGERATOR DOOR-WHITE
20
REFRIGERATOR DOOR-ALMD
20A
BEARING-HINGE
22
218730603 Frigidaire Door Gasket
23
DAIRY DOOR-SMALL
24
WCI G187557-02
24A
5304455651 Frigidaire Refrigerator Screw
25
RACK-REFR/FRZR (3)
27
WCI 5303001297
28
WCI 5303001296
29
BOTTOM HANDLE END CAP
←
