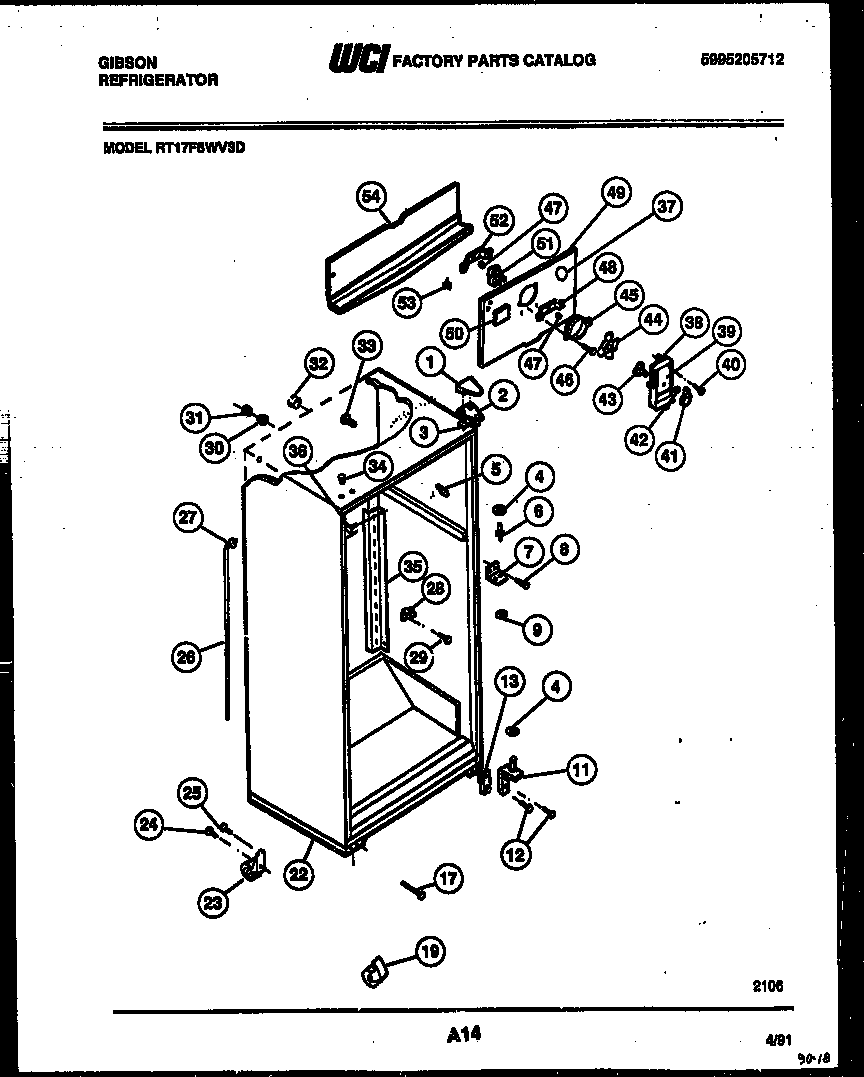

RT17F6WV3D 03 – CABINET PARTS

RT17F6WV3D 03 – CABINET PARTS

Products

PositionProduct
*36817PLUG, BUTTON, CABINET LINER (NI)
*36817TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1COVER - HINGE-WHEAT
1COVER-UPPER HINGE, WHITE
1COVER-UPPER HINGE, ALMOND
2BRACKET-UPPER HINGE
3SHIM - UPPER HINGE
4WASHER, .34 X .62 X .05, NYLON
5TRIM-CABINET CORNER, ALMOND
5TRIM-CABINET CORNER, WHITE
5WCI 5303202338
6WCI 5308000184
7BRACKET-CTR HINGE
8BSPACER-MULLION MTG, STEEL
8WCI 5308012258
8AWASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
9WCI 5308000186
11BRACKET-LOWER HINGE, W/ HINGE PIN
11CTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
11BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
11AWCI 5303212598
12241710601 Frigidaire Refrigerator Screw
13WCI 5303212488
17BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
19WCI 5303212490
22BASE-CABINET
23WCI 5308009773
24BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
26WCI 5303210377
27WCI 5303207353
28WCI 5308000056
29WCI 5303001361
30WCI 5303001286
31WCI 5303001287
32TUBE-RUBBER
33SUPPORT-COIL COVER
34PLUG-BUTTON, WHITE
34BUTTON-HINGE-WHEAT
34PLUG-BUTTON, ALMOND, UPR HINGE HOLES
35CHANNEL, RH & LH
365304455852 Frigidaire Refrigerator Screw
375303208309 Frigidaire Refrigerator Plug Hole
38WCI 5316306176
39WCI 5300186232
41WCI 5308011763
42Nut,push-on
43DAMPER-FAN COVER
445308000010 Frigidaire Refrigerator Evaporator Fan Blade
45RING-FAN ORIFICE
465304455651 Frigidaire Refrigerator Screw
47G187559 Frigidaire Refrigerator Bushing
48WCI 5303205118
49B5304455650 Frigidaire Refrigerator Screw
49ANUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
49WCI 3001527
50BUTTON - DECORATIVE PLUG
515300158289 Frigidaire Evaporator Fan Motor
52BRACKET-MOTOR MTG, REAR
53WCI 5308000107
54TROUGH-DRAIN
