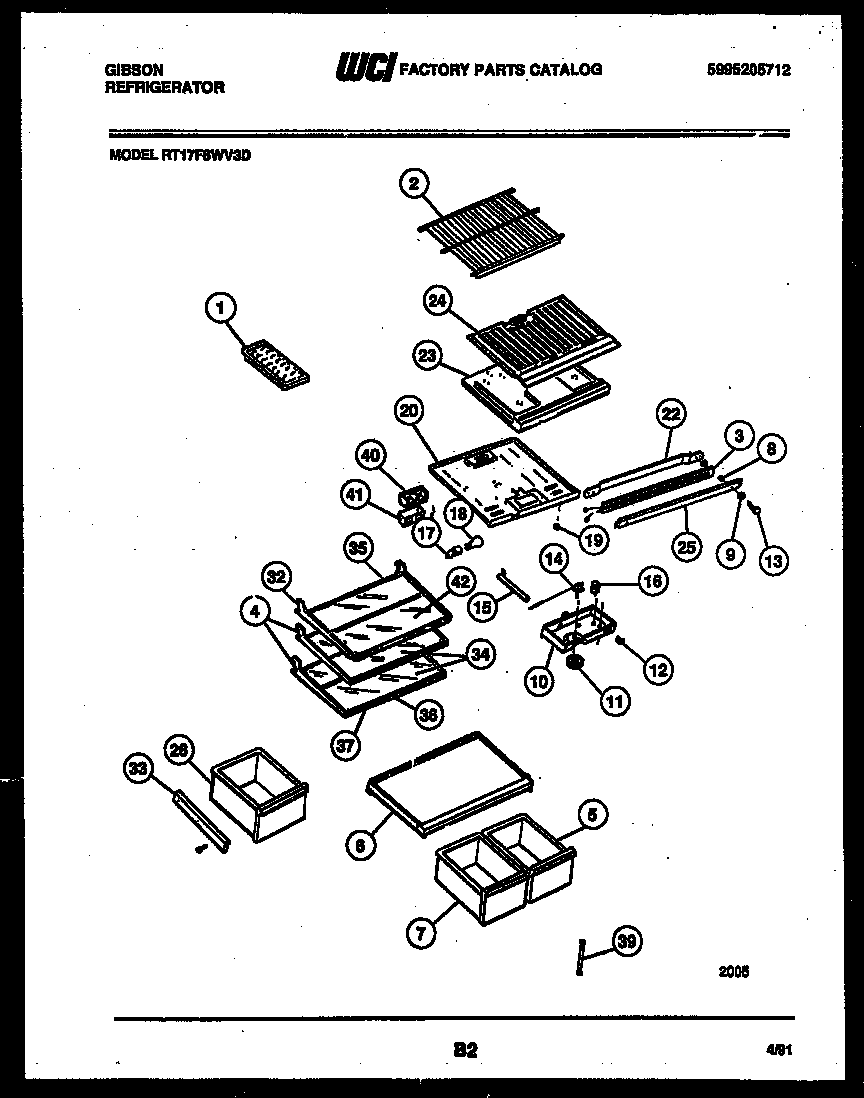

RT17F6WV3D 04 – SHELVES AND SUPPORTS

RT17F6WV3D 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2AEND CAP-SHELF,PROTECTOR
2B5304509705 Frigidaire Refrigerator Grommet
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2WCI 5317705910
3WCI 5308017408
4FRAME-FULL SHELF
5WCI 5349001537
6COVER-CRISPER PAN
6AGASKET-COVER
7WCI 5303270836
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10A5304455650 Frigidaire Refrigerator Screw
10WCI 5303206574
11WCI 5303201777
12SWITCH-ROCKER
13WCI 5308012258
14AWCI 5303001260
14WCI 5303018894
15RAIL-OFFSET LH
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20TOP PANEL-REFR
20AWCI 5303001380
22WCI 5308003604
23A3205266 Frigidaire Refrigerator Edge Protector
23WCI 5303018899
24WCI 5303001537
25WCI 5303200465
25WCI 3916132
25WCI 5303916134
26MEAT PAN
32WCI 5303271050
33AHANGER-PAN RH (NON-ILLUSTRATED)
33BWCI 08014528
33HANGER-PAN LH
35WCI 5303211192
35ALOCK-SHELF TRIM, REAR
36WCI 5303209274
37WCI 5303209119
39SUPPORT-CRISPER CVR, ADJUSTABLE
40DEFLECTRO, AIR, W/SEAL
41WCI 5303001448
41BEXTENSION, AIR DEFLECTOR, WITH INSULATION
41A5303001449 Frigidaire Refrigerator Seal
42GLASS-FULL SHELF
