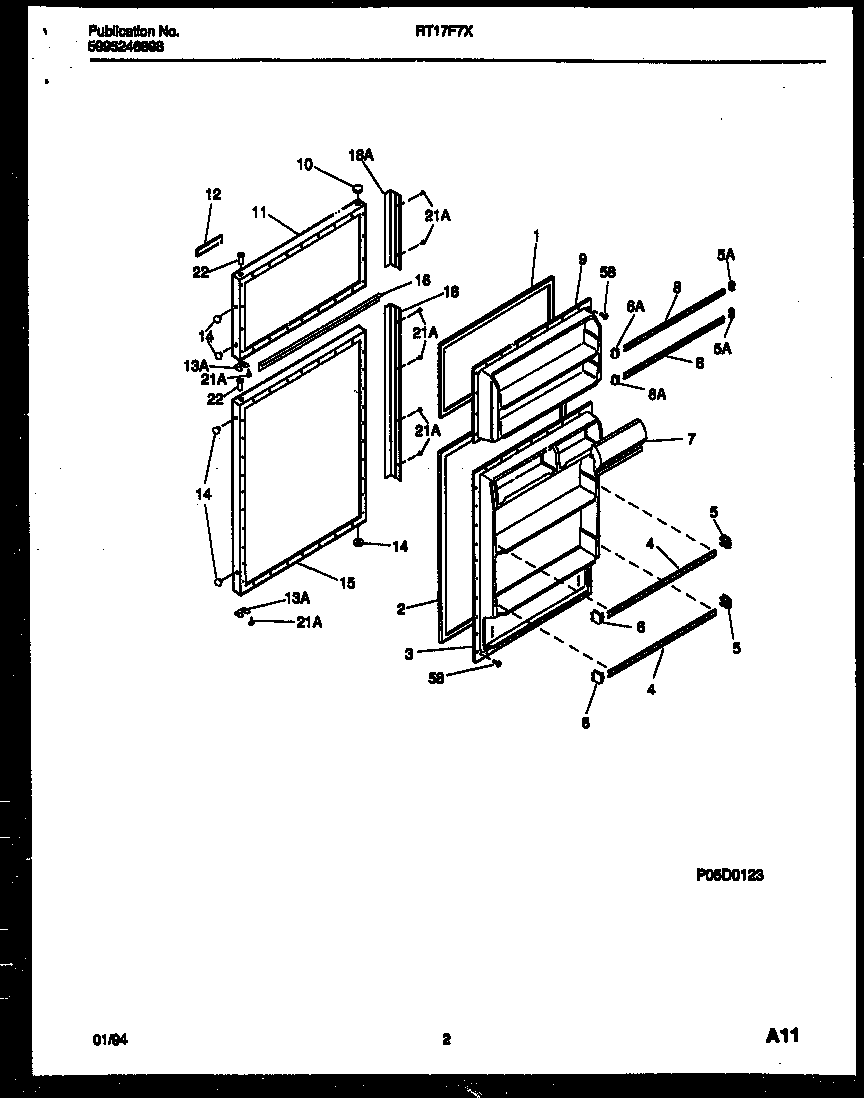

RT17F7DX4D 02 – DOOR PARTS

Products

Position	Product
*67719	INSULATION
1	WCI 215608931
2	218730603 Frigidaire Door Gasket
3	WCI 5303272501
4	WCI 5303272502
5A	WCI 5303272498
5	WCI 5303272503
6	WCI 5303272504
6A	WCI 5303272499
7	WCI 5303272510
7A	WCI 5303001380
8	WCI 5303272497
9	WCI 5303272496
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	WCI 5303916894
12	NAMEPLATE ASSY
13A	WCI 5308000255
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	PANEL-REFR DOOR, ALMOND
16	WCI 3015275
18	WCI 5303281406
18A	WCI 5303281405
21A	WCI 5308011745
22	BEARING-HINGE
58	5304455651 Frigidaire Refrigerator Screw
