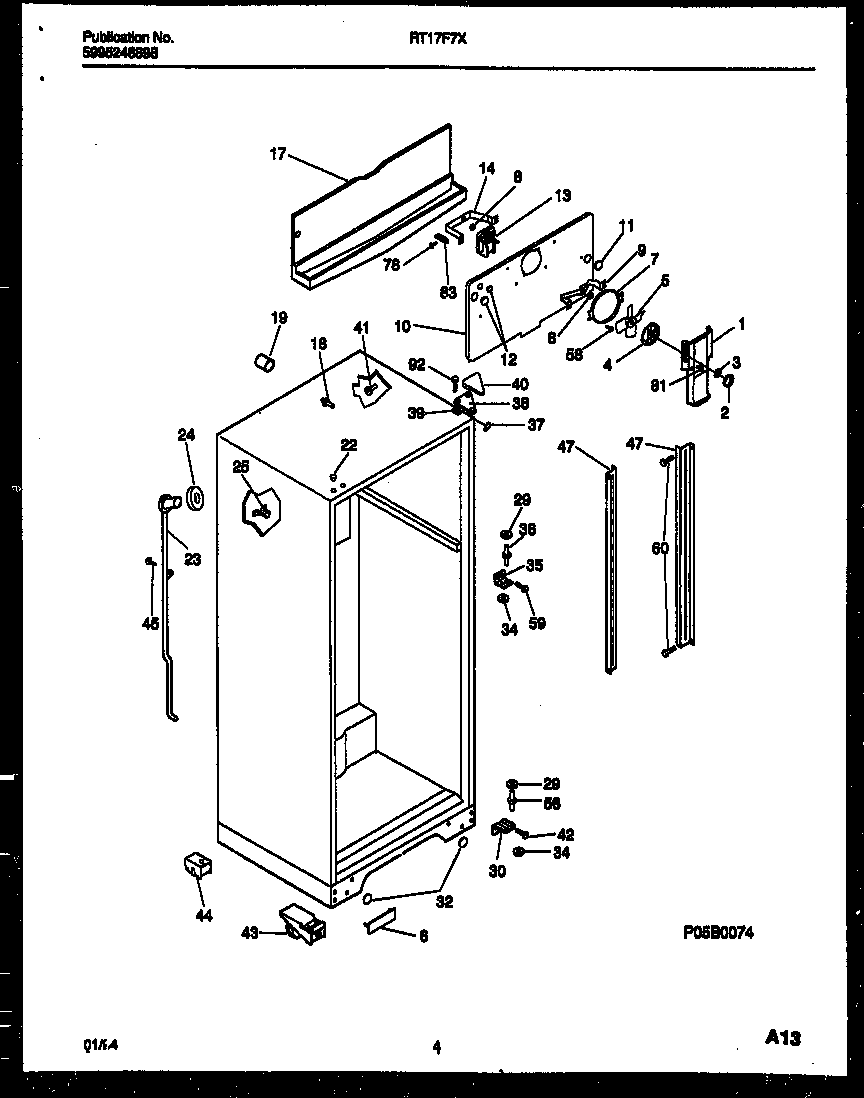

RT17F7DX4D 03 – CABINET PARTS

Products

Position	Product
*67727	PLUG, BUTTON, CABINET LINER (NI)
1A	WCI 5303272493
1	WCI 5303272512
2	WCI 3206381
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 215846500
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3206119
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079000
12	WCI 215079100
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 3206146
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22A	5304500008 Frigidaire Oven Screw
22	WCI 215774911
23	WCI 5303269702
24	WCI 5303207353
25	WCI 5308000056
25A	WCI 5303001361
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 3206136
30A	TAPPING PLATE, LOWER HINGE, (2) (NI)
32	WCI 215217702
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38	WCI 3206100
39	SHIM – UPPER HINGE
40	WCI 3206105
41A	5308000039 Frigidaire Refrigerator Screw
41B	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
42	241710601 Frigidaire Refrigerator Screw
43B	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43D	WCI 5308011326
43C	WCI 5308009790
43A	WCI 5308009760
43	WCI 5300188673
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 3206202
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
60	5304455852 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
