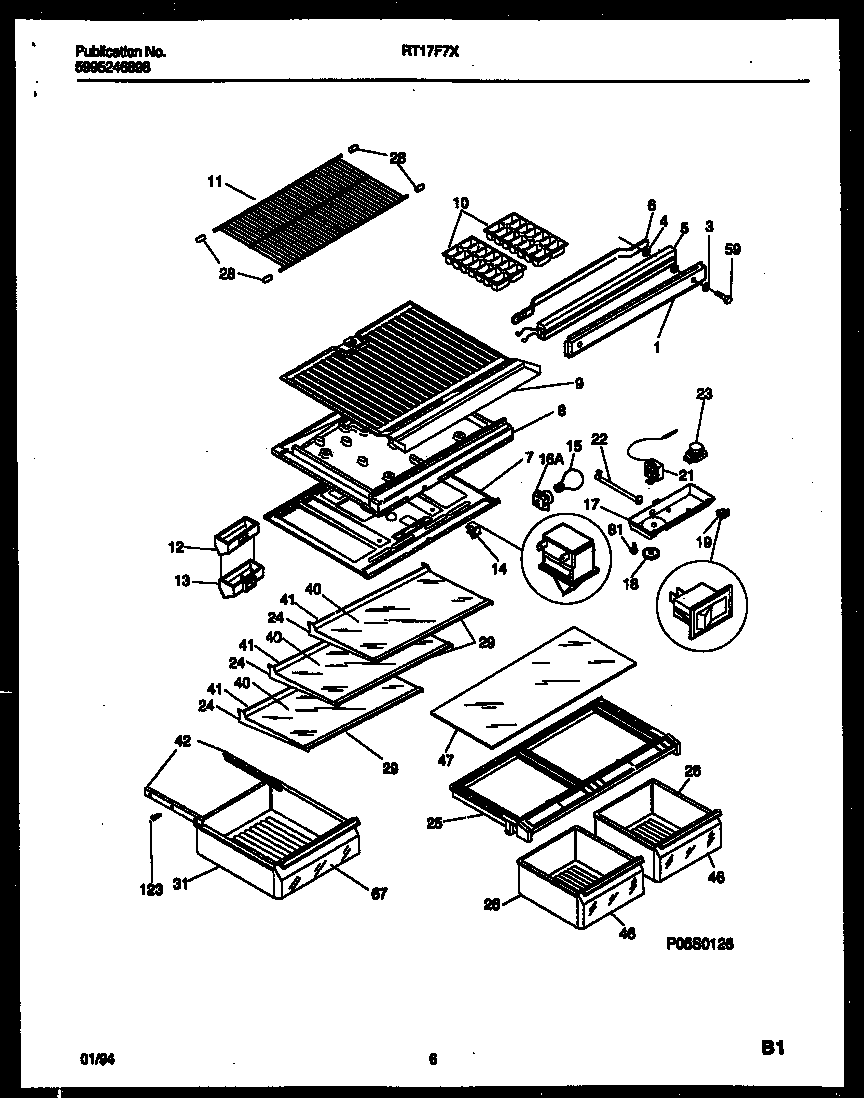

RT17F7DX4D 04 – SHELVES AND SUPPORTS

RT17F7DX4D 04 – SHELVES AND SUPPORTS

Written by

in

RT17F7DX4D 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*67735LOCK-SHELF TRIM, REAR
*67735CLIP-CANTILEVER SHLF
1WCI 3206125
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206120
6WCI 215170801
7WCI 3206185
7AWCI 5303001380
8AWCI 3018900
8B3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206186
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
18WCI 5303209251
19WCI 5303207249
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24FRAME-FULL SHELF
24WCI 5303272553
25WCI 3206183
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 5303300398
29AWCI 5303209274
31WCI 3206351
40WCI 5303272554
41WCI 5303272552
42AWCI 3206379
42WCI 3206380
46WCI 5303299839
46WCI 5303299840
47WCI 5303271945
59WCI 5308012258
67WCI 5303299846
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
