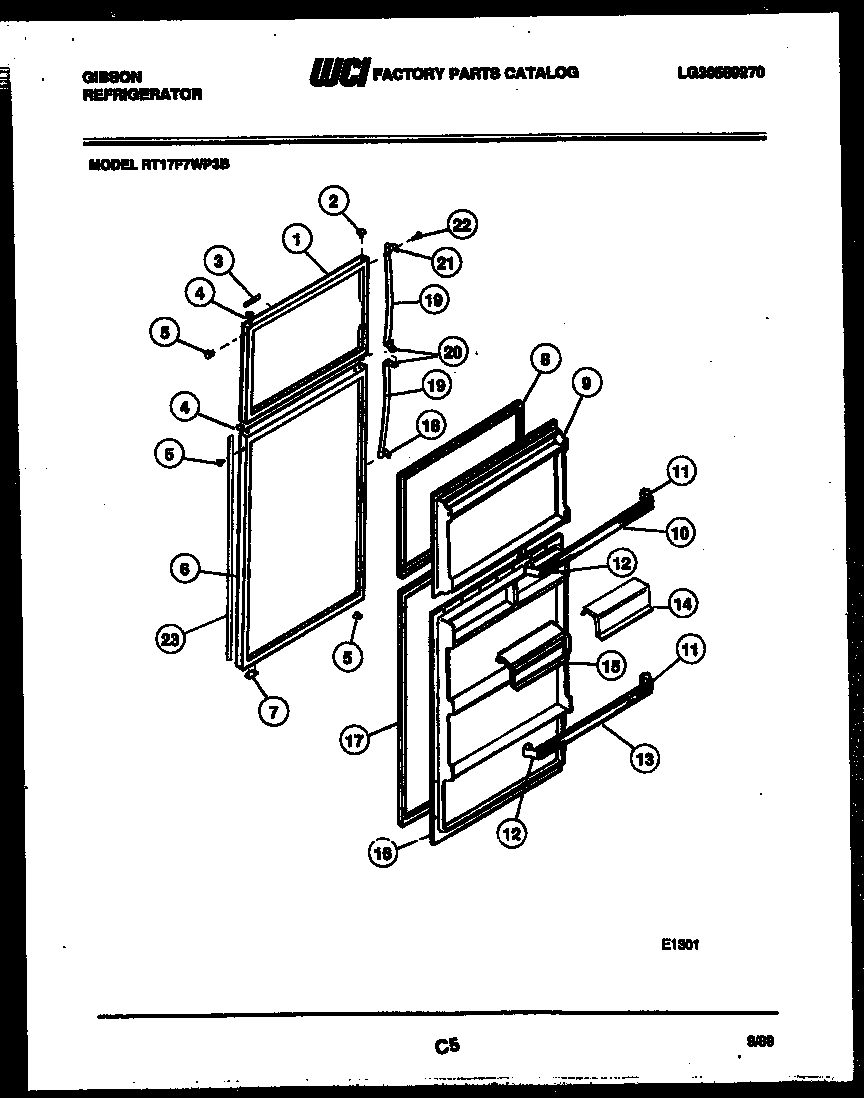

RT17F7WP3B 02 – DOOR PARTS

Products

Position	Product
1	PANEL, OUTER, AVOCADO
1	PANEL, OUTER, WHITE
1	PANEL, OUTER, WHEAT
1	PANEL, OUTER, ALMOND
1	PANEL, OUTER, COFFEE
2	WCI G169332-01
2	WCI G169332-11
2	WCI G169332-10
2	WCI G169332-08
2	WCI G169332-09
3C	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3A	LABEL, UPPER
3	NAMEPLATE
3B	LABEL-LOWER
4	BEARING, HINGE (3)
5	240494001 Frigidaire Refrigerator Plug Button
5	WCI G162977-10
5	WCI G162977-09
5	WCI G162977-08
5	WCI G162977-11
6	PANEL, OUTER, COFFEE
6	PANEL, OUTER, WHEAT
6	PANEL, OUTER, ALMOND
6	PANEL, OUTER, AVOCADO
6	PANEL, OUTER, WHITE
7	STOP, DOOR. PC & FC (2)
8	GASKET-FREEZER
9	WCI G184557-01
10	WCI G162887-15
11	SUPPORT RS (4)
12	SUPPORT LS (4)
13	WCI G162887-12
14	DAIRY DOOR (2)
15	WCI G178501-10
16	WCI G184558-01
16A	5304455651 Frigidaire Refrigerator Screw
17	218730603 Frigidaire Door Gasket
18	WCI G179801
19	WCI G170495-24
20	WCI G187329-01
21	WCI G179800
22A	WCI G89643
22	WCI G185566
23	WCI 3204708
