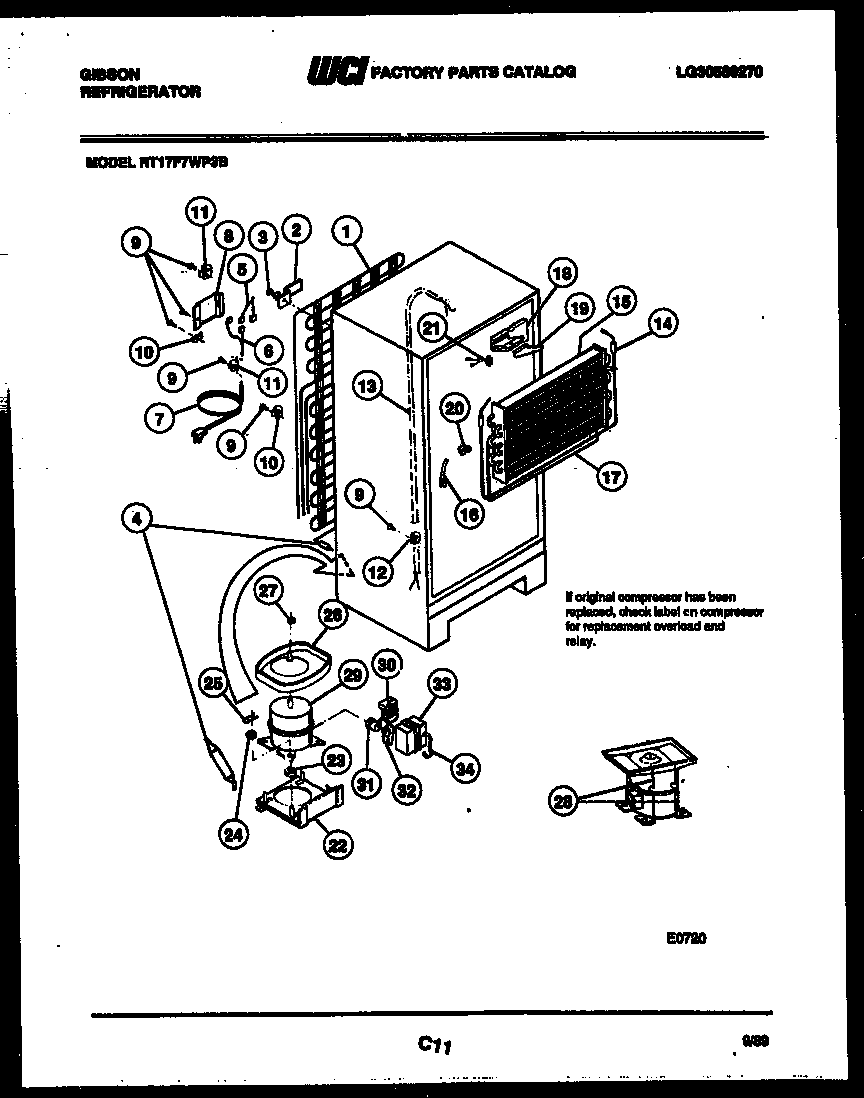

RT17F7WP3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

Products

Position	Product
*15688	HOT TUBE REPAIR KIT
1	WCI G178225
2	BRACKET-CONDENSER MOUNTING (4)
3	SCREW-8-32 X 1/2 (4)
3A	WASHER
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS, WIRING
6	HARNESS-COMPRESSOR
7	CORD, SERVICE
8	WCI G183584
9	5304455651 Frigidaire Refrigerator Screw
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	240396801 Frigidaire Refrigerator Tube Clamp
13	HEAT-EXCH
14	HEATER, DEFROST
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR
18	BLOCK, EVAPORATOR, RH
19	PLUG, EVAPORATOR INSULATION BLOCK, R H
20	BLOCK, LEFT SIDE
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	PLATE
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER, COMPRESSOR MOUNTING (4)
25	CLIP, COMPRESSOR MOUNTING (4)
26A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26	DEFROST PAN & NUT
27	NUT, LOCK
28	PAN RETAINER KIT-SERVICE
29	COMPRESSOR-SERVICE
30	216594300 Frigidaire Refrigerator Starter
30	WCI 3007171
31	WCI 3007416
32	RETAINER, OVERLOAD
34	5303006412 Frigidaire Refrigerator Cover Mounting Strap
