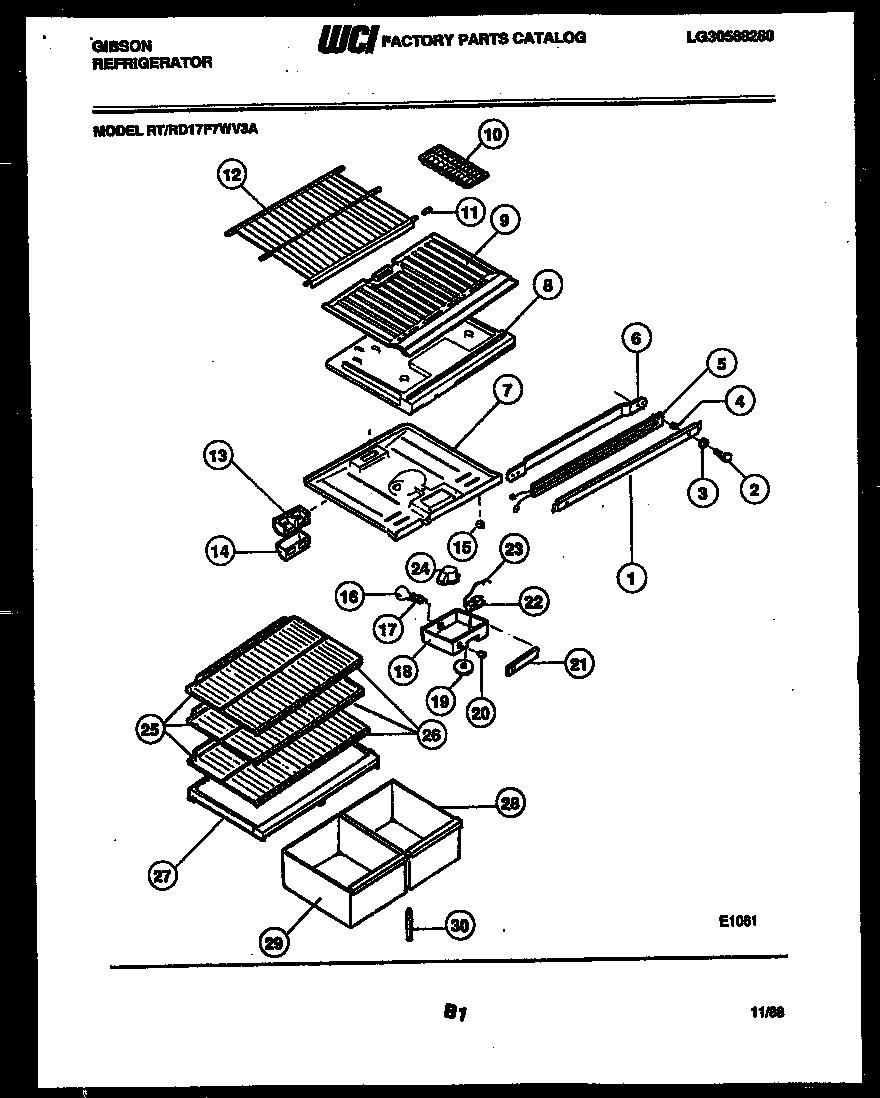

RT17F7WV3A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3916133
1WCI 3200465
1WCI 3916132
1WCI 3916134
1WCI 3916135
2SCREW, BRACKET MOUNTING (4)
3WASHER (2)
4SPACER (NON-ILLUSTRATED)
5HTR, CENTER RAIL
6CLAMP, MULLION MOUNTING
7ASCREW (5)
7TOP-REFRIGERATOR
8AHARNESS, WIRING
8DIVIDER, CENTER
9BOTTOM, FC
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI G166495-01
12WCI G184572-03
13DEFLECTOR AIR
14WCI G162178
155309918806 Frigidaire Refrigerator Light Switch Door
16316538904 Frigidaire Oven Lamp Light
17SOCKET LIGHT
18A5304455650 Frigidaire Refrigerator Screw
18WCI G174765-03
19KNOB-TEMP CONTROL
20WCI G178402-05
21LABEL – CONTROL BOX
22WCI 3200810
22AWCI G107080
23TUBE
24A5304455649 Frigidaire Refrigerator Screw
24215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25SHELF
26WCI G172410-04
27COVER-CRISPER
27AGASKET, COVER
28WCI G490015-33
29PAN-SMALL LS
30SUPPORT, CRISPER COVER
