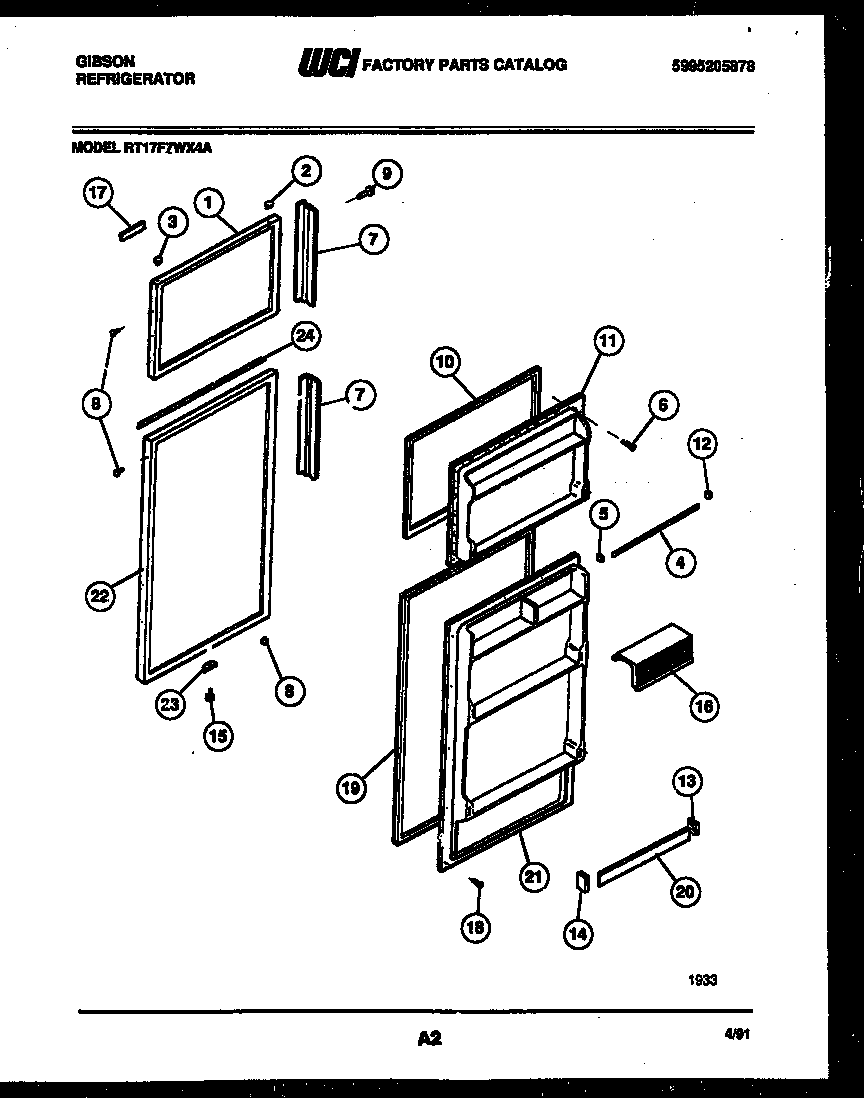

RT17F7WX4A 02 – DOOR PARTS

Written by

Products

Position	Product
*47582	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303916892
1	PANEL-FRZR DOOR, WHEAT
1	WCI 5303916894
2	BUTTON-WHEAT
2	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
2	PLUG-BUTTON, WHITE, HINGE BRG HOLE
3	BEARING-HINGE
4	WCI 5303272497
5	WCI 5303272499
7	HANDLE-DOOR, REFR/FRZR, (2)
8	BUTTON-WHEAT
8	240494001 Frigidaire Refrigerator Plug Button
8	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
10	WCI 5303001399
11	WCI 5303272496
12	WCI 5303272498
13	WCI 5303272503
14	WCI 5303272504
15	WCI 5308011745
16	WCI 5303272510
17	NAMEPLATE ASSY
18	5304455651 Frigidaire Refrigerator Screw
19	218730603 Frigidaire Door Gasket
20	WCI 5303272502
21	WCI 5303272501
22	WCI 5303916891
22	PANEL-REFR DOOR, WHEAT
22	WCI 5303916889
23	WCI 5308000255
24	WCI 5318755101
