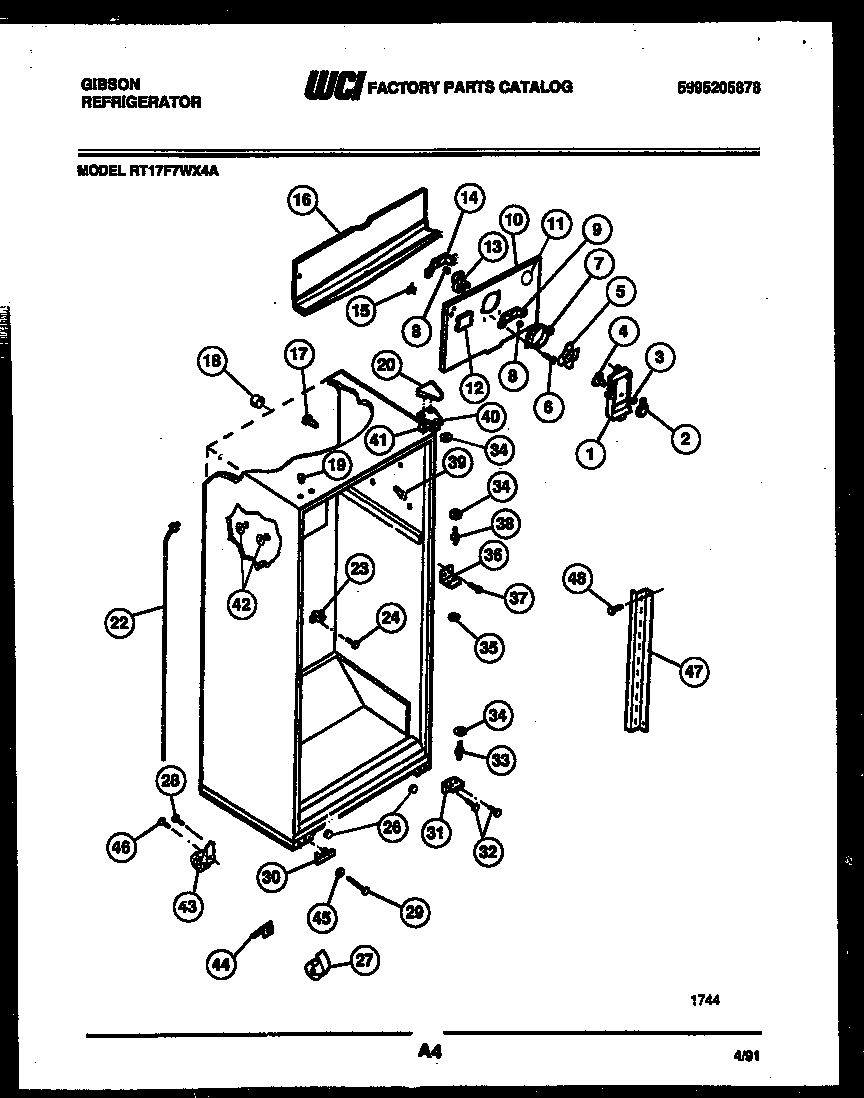

RT17F7WX4A 03 – CABINET PARTS

RT17F7WX4A 03 – CABINET PARTS

Written by

in

RT17F7WX4A 03 – CABINET PARTS

Products

PositionProduct
*47597PLUG, BUTTON, CABINET LINER (NI)
*47598TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1WCI 5303272512
1AWCI 5303272493
2WCI 3206381
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10B5304455650 Frigidaire Refrigerator Screw
10WCI 3206119
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303272494
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
16WCI 3206146
17SUPPORT-COIL COVER
18TUBE-RUBBER
19BUTTON-HINGE-WHEAT
19PLUG-BUTTON, ALMOND, UPR HINGE HOLES
19PLUG-BUTTON, WHITE
20WCI 3206105
20WCI 3206101
20COVER-UPPER HINGE, WHEAT
22WCI 5303269702
23WCI 5308000056
24WCI 5303001361
26PLUG-BUTTON
27WCI 5300188673
285304455651 Frigidaire Refrigerator Screw
29BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
30WCI 3206135
31WCI 3206136
32241710601 Frigidaire Refrigerator Screw
335303001321 Frigidaire Refrigerator Lower Hinge Pin
34WASHER, .34 X .62 X .05, NYLON
35WCI 5308000186
36BRACKET-CTR HINGE
37SCREW – MULLION (2)
38WCI 5308000184
39TRIM-CABINET CORNER, ALMOND
39WCI 5303202338
39TRIM-CABINET CORNER, WHITE
40WCI 3206100
41SHIM – UPPER HINGE
425304500407 Frigidaire Refrigerator Shelf Mounting Grommet
425304509705 Frigidaire Refrigerator Grommet
43WCI 3206237
44WCI 5308009710
45WCI 5308011326
46WCI 08014528
47WCI 3206202
485304455852 Frigidaire Refrigerator Screw
