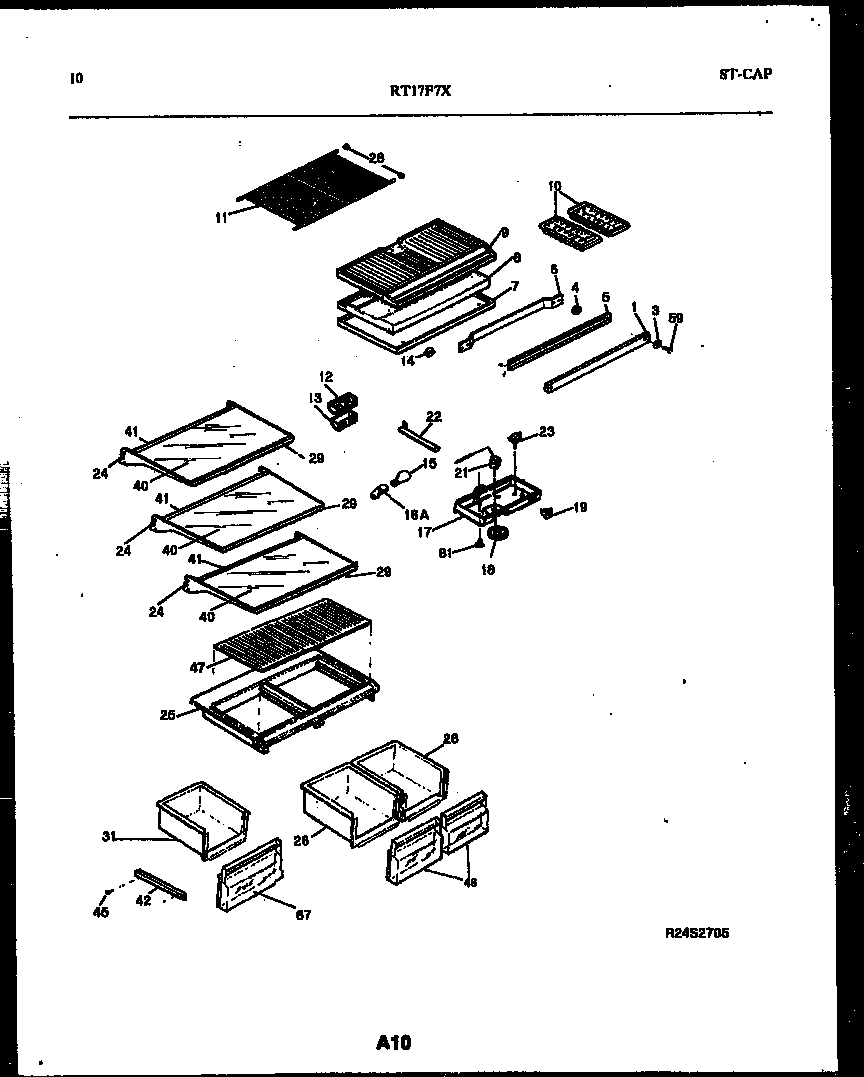

RT17F7WX4B 06 – SHELVES AND SUPPORTS

RT17F7WX4B 06 – SHELVES AND SUPPORTS

Written by

in

RT17F7WX4B 06 – SHELVES AND SUPPORTS

Products

PositionProduct
*52040CLIP-CANTILEVER SHLF
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24FRAME-FULL SHELF
24WCI 5303272553
25WCI 3206183
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 5303272551
29AWCI 5303209274
31WCI 3206351
40WCI 5303272554
41ALOCK-SHELF TRIM, REAR
41WCI 5303272552
42AWCI 3206379
42WCI 3206380
45WCI 08014528
46WCI 5303272514
46WCI 5303272513
47WCI 5303271945
59SCREW – MULLION (2)
67WCI 5303272515
815304455650 Frigidaire Refrigerator Screw
