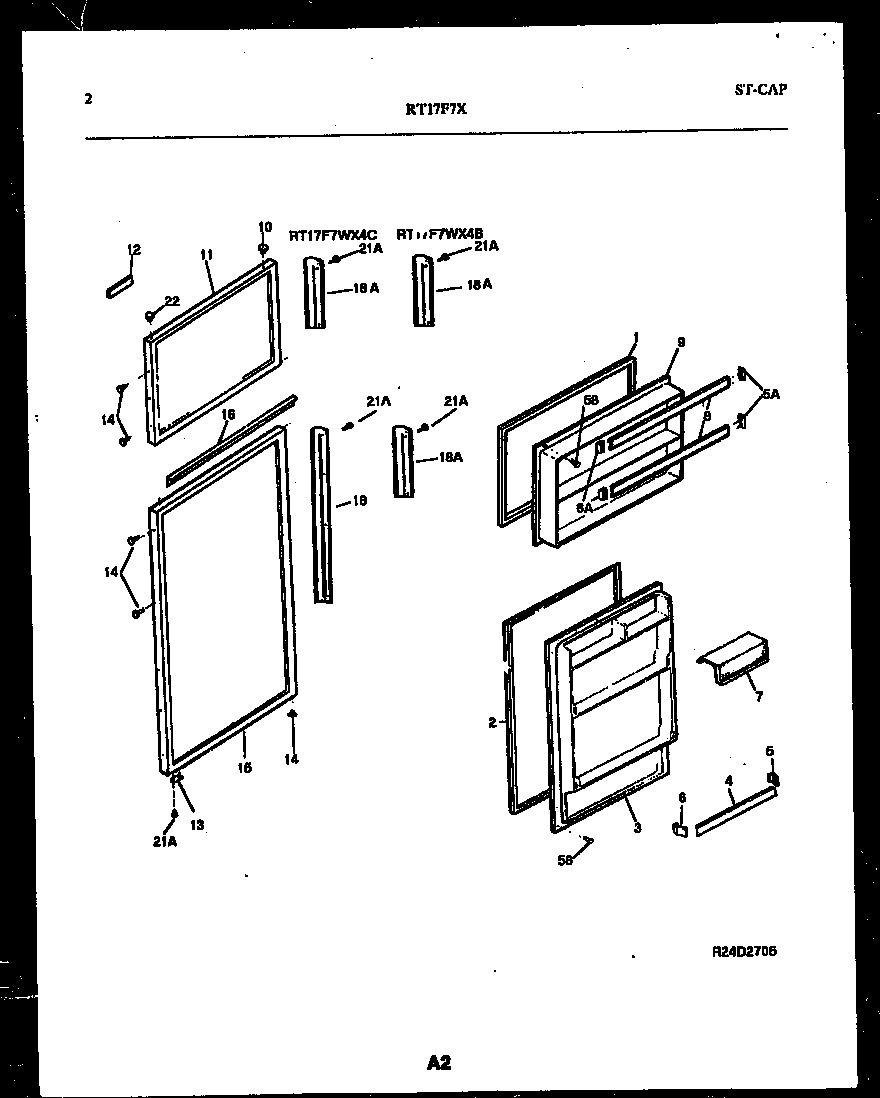

RT17F7WX4C 02 – DOOR PARTS

Products

Position	Product
*52023	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303001399
2	218730603 Frigidaire Door Gasket
3	WCI 5303272501
4	WCI 5303272502
5A	WCI 5303272498
5	WCI 5303272503
6A	WCI 5303272499
6	WCI 5303272504
7	WCI 5303272510
8	WCI 5303272497
9	WCI 5303272496
10	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	WCI 5303916892
12	NAMEPLATE ASSY
13	WCI 5308000255
14	240494001 Frigidaire Refrigerator Plug Button
15	PANEL-REFR DOOR, WHITE
16	WCI 5318755101
18	WCI 5303281406
18A	WCI 5303281405
21A	WCI 5308011745
22	BEARING-HINGE
58	5304455651 Frigidaire Refrigerator Screw
