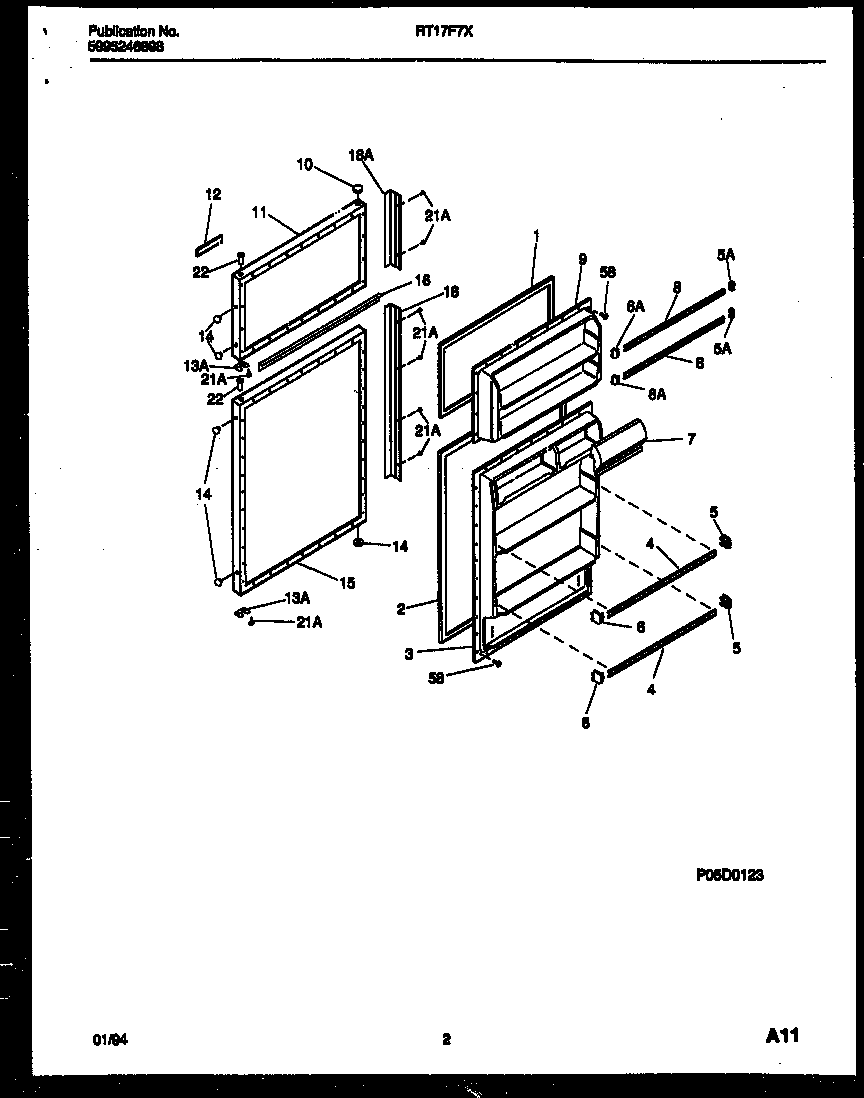

RT17F7WX4D 02 – DOOR PARTS

RT17F7WX4D 02 – DOOR PARTS

Written by

in

RT17F7WX4D 02 – DOOR PARTS

Products

PositionProduct
*67719INSULATION
1WCI 215608931
2218730603 Frigidaire Door Gasket
3WCI 5303272501
4WCI 5303272502
5AWCI 5303272498
5WCI 5303272503
6AWCI 5303272499
6WCI 5303272504
7AWCI 5303001380
7WCI 5303272510
8WCI 5303272497
9WCI 5303272496
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303916892
12NAMEPLATE ASSY
13AWCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE
16WCI 3015275
18WCI 5303281406
18AWCI 5303281405
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
