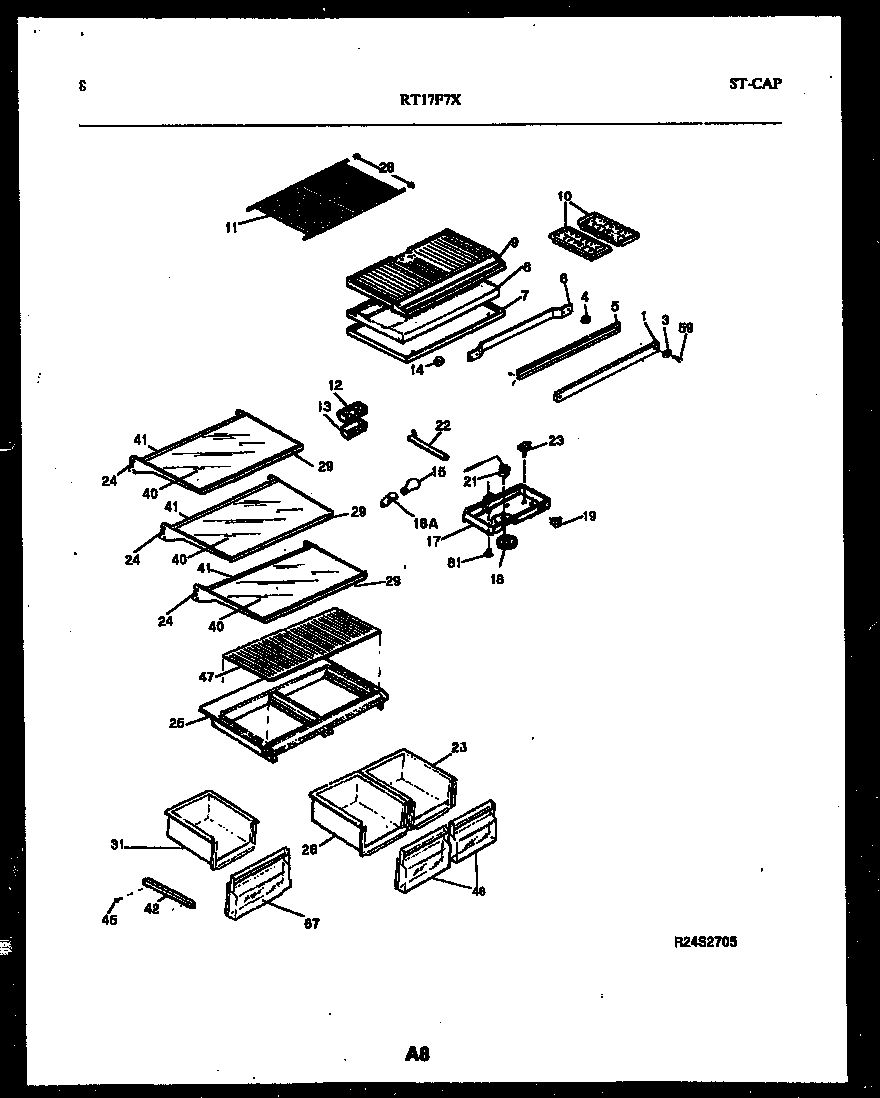

RT17F7YX4B 05 – SHELVES AND SUPPORTS

RT17F7YX4B 05 – SHELVES AND SUPPORTS

Written by

in

RT17F7YX4B 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206123
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 3206120
6WCI 5308003604
7AWCI 5303001380
7WCI 3206185
8A3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206186
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5317705906
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17AWCI 08016567
17WCI 5303272507
18WCI 5303209251
19WCI 5303272508
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
