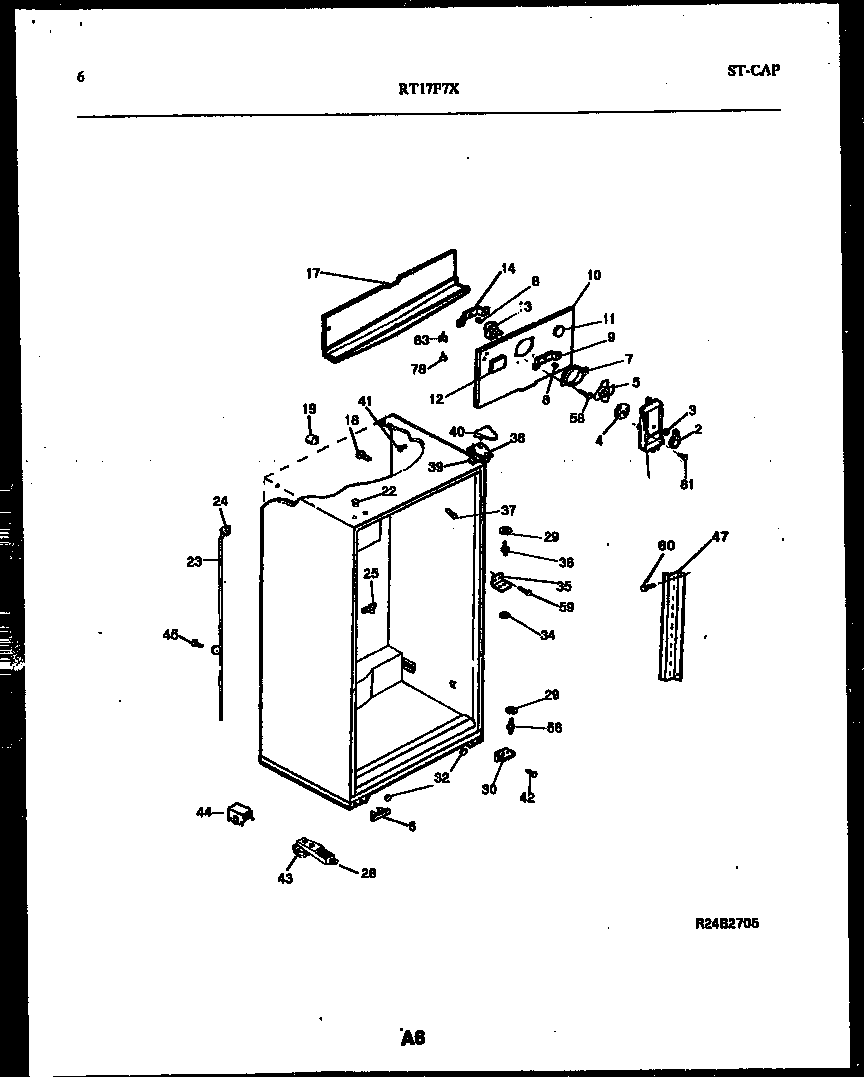

RT17F7YX4C 04 – CABINET PARTS

Products

Position	Product
*52031	PLUG, BUTTON, CABINET LINER (NI)
37	WCI 5303202338
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	WCI 3206100
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, WHEAT
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5300188673
43C	5304500008 Frigidaire Oven Screw
43A	WCI 5308009760
43B	WCI 5308009790
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 3206202
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
60	5304455852 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
