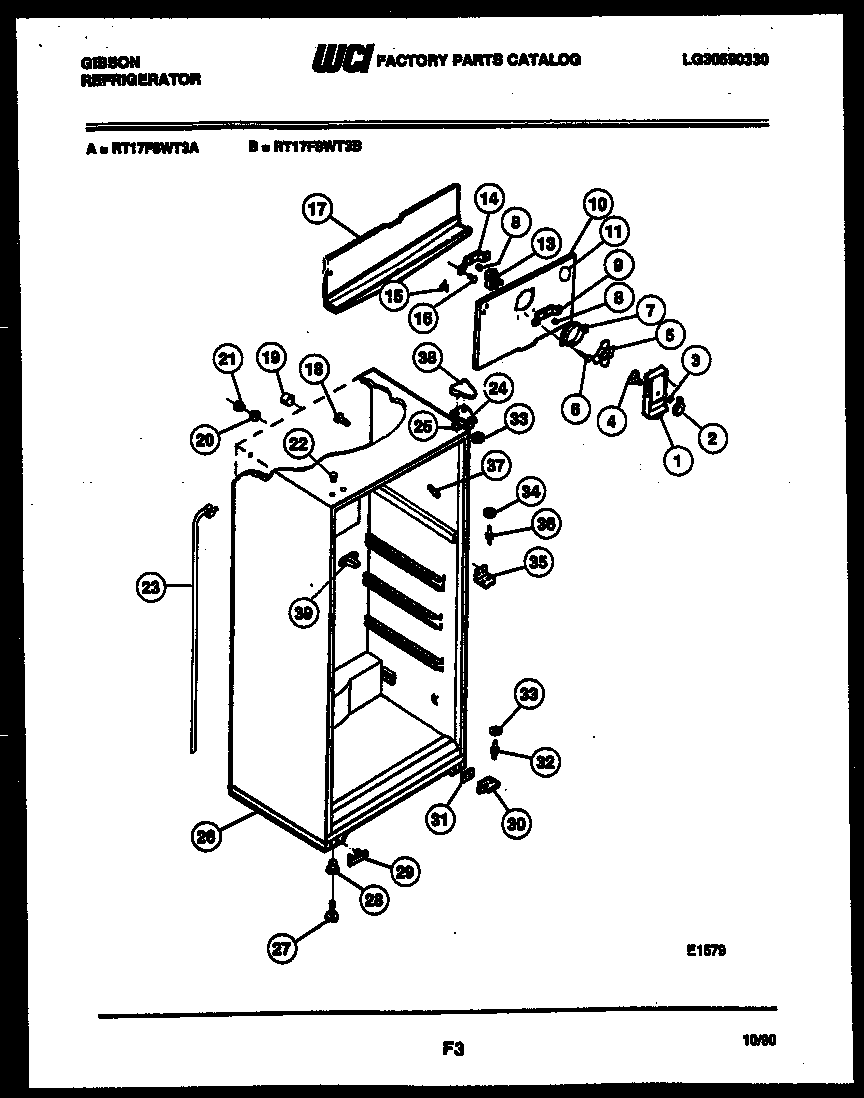

RT17F8WT3A 03 – CABINET PARTSadmin2025-04-26T10:29:55+00:00RT17F8WT3A 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *28879 | WCI 5303001361 |
| *28879 | PLUG, BUTTON, CABINET LINER (NI) |
| 1 | WCI G163061-81 |
| 2 | WCI 5308000081 |
| 3 | Nut,push-on |
| 4 | DAMPER-FAN COVER |
| 5 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 7 | RING-FAN ORIFICE |
| 8 | G187559 Frigidaire Refrigerator Bushing |
| 9 | WCI 5303001226 |
| 10B | 5304455650 Frigidaire Refrigerator Screw |
| 10 | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 10A | NUT-SPEED (2) |
| 11 | WCI 5303203044 |
| 13 | 5300158289 Frigidaire Evaporator Fan Motor |
| 14 | BRACKET-MOTOR MTG, REAR |
| 15 | WCI 5308000107 |
| 16 | 218843801 Frigidaire Refrigerator Screw |
| 17 | TROUGH-DRAIN |
| 18 | SUPPORT-COIL COVER |
| 19 | TUBE-RUBBER |
| 20 | WCI 5303001286 |
| 21 | WCI 5303001287 |
| 22 | PLUG-BUTTON, WHITE |
| 22 | PLUG, COFFEE |
| 22 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 22 | BUTTON-HINGE-AVOCADO |
| 22 | BUTTON-HINGE-WHEAT |
| 23A | WCI 5303207353 |
| 23 | WCI 5303210377 |
| 24 | BRACKET-UPPER HINGE |
| 25 | SHIM - UPPER HINGE |
| 26 | WCI 08010091 |
| 27 | SCREW-LEVELING (4) |
| 28 | WCI 5308003584 |
| 29 | COVER-HOLE, LOWER HINGE |
| 30A | 241710601 Frigidaire Refrigerator Screw |
| 30 | HINGE BRACKET - BOTTOM |
| 31 | SHIM-LOWER HINGE |
| 32 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 33 | WASHER, .34 X .62 X .05, NYLON |
| 34 | WASHER, .28 X .62 X .19, NYLON |
| 35 | BRACKET-CTR HINGE |
| 35A | WCI 5308012258 |
| 36 | WCI 5308000184 |
| 37 | CORNER |
| 37 | WCI 5303202338 |
| 37 | WCI 5303202339 |
| 37 | TRIM-CABINET CORNER, ALMOND |
| 37 | TRIM-CABINET CORNER, WHITE |
| 38 | COVER - HINGE-WHEAT |
| 38 | WCI 5303001666 |
| 38 | COVER-HINGE-AVOCADO |
| 38 | COVER-UPPER HINGE, ALMOND |
| 38 | COVER-UPPER HINGE, WHITE |
| 39 | WCI 5308000056 |
