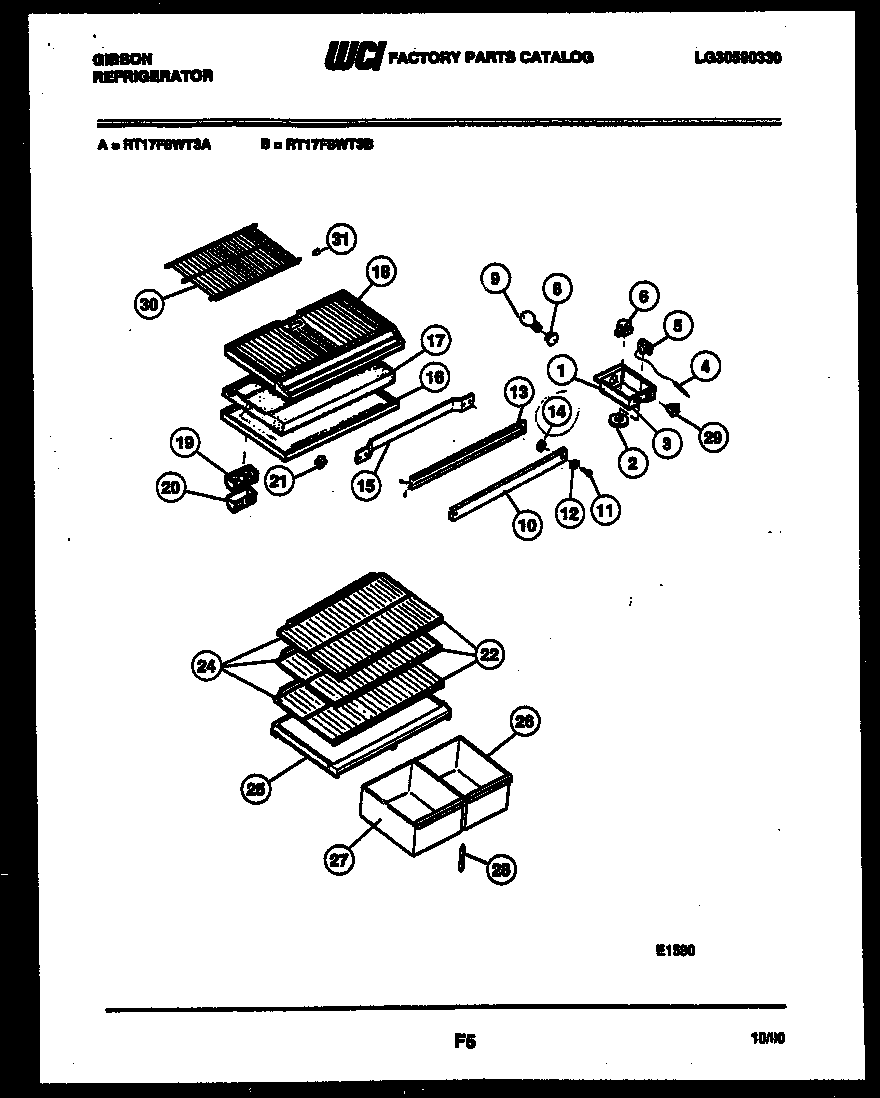

RT17F8WT3B 04 – SHELVES AND SUPPORTS

RT17F8WT3B 04 – SHELVES AND SUPPORTS

Written by

in

RT17F8WT3B 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5317672203
1A5304455650 Frigidaire Refrigerator Screw
2WCI 5308010011
3WCI G188379-01
4TUBE
5WCI 5303200810
5AWCI 5303001260
6A5304455649 Frigidaire Refrigerator Screw
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
8SOCKET-LIGHT/LAMP
9316538904 Frigidaire Oven Lamp Light
10WCI 3916132
10WCI 5303200465
10WCI 5303916134
10WCI 3916135
10WCI 3916133
11WCI 5308012258
12WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
13WCI 5308017408
14SPACER-MULLION MTG, STEEL
15WCI 5308003604
16AWCI 5303001380
16TOP PANEL-REFR, W/ SNAP BUSHING
17WCI 5308009750
17AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
18WCI 5303001537
19DEFLECTOR-AIR
20COVER – AIR DEFLECTOR
215309918806 Frigidaire Refrigerator Light Switch Door
22TRIM-SHELF
24SHELF
25COVER-CRISPER PAN
26PAN-CRISPER
27PAN-SMALL LS
28SUPPORT-CRISPER CVR, ADJUSTABLE
29SWITCH-ENERGY SAVER, SLIDE TYPE
30WCI G184572-03
30B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
30AWCI 5303001601
31END CAP-SHELF,PROTECTOR
