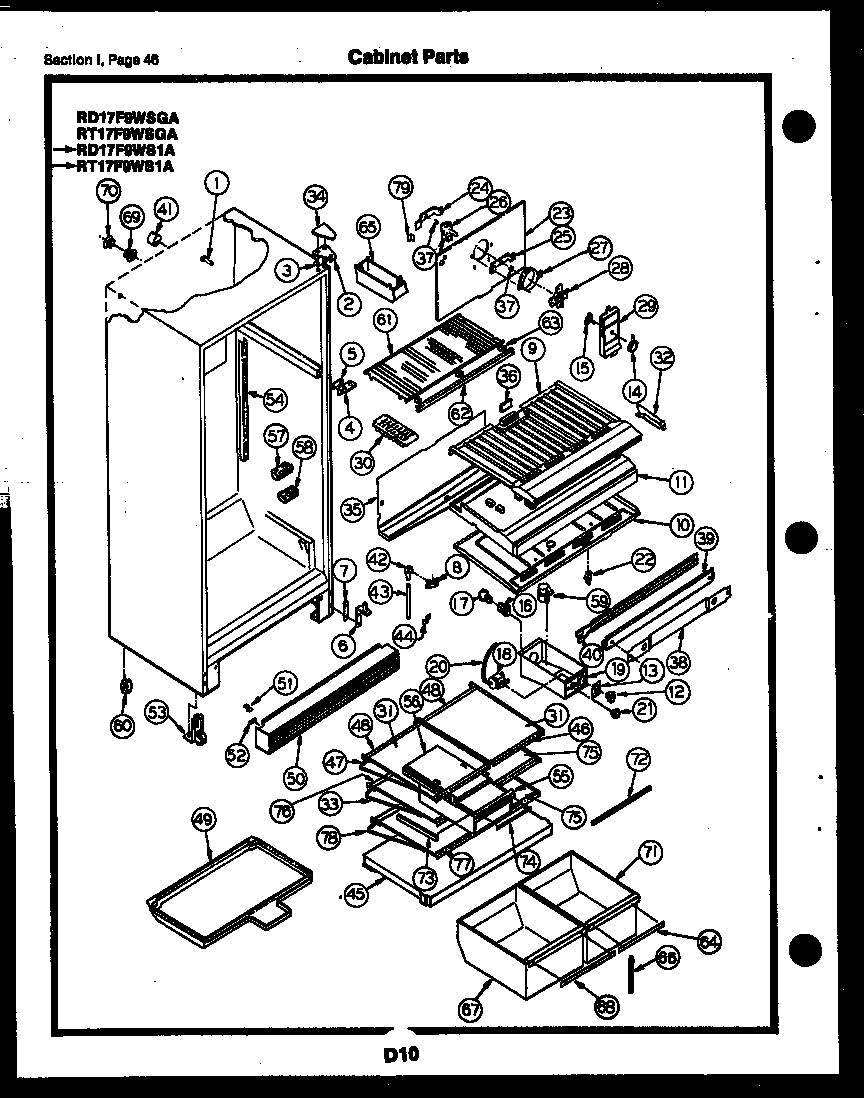

RT17F9WS1A 23 – CABINET PARTSadmin2025-04-26T10:18:41+00:00RT17F9WS1A 23 – CABINET PARTS
Products
| Position | Product |
|---|
| 27A | NUT, ORIFICE (2) |
| 27 | RING, FAN ORIFICE |
| 28 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 29A | LABEL - UPPER |
| 29B | LABEL - LOWER |
| 29 | WCI G162511-14 |
| 30 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 32 | WCI G162176 |
| 32A | WCI G162177 |
| 33 | WCI G186156-02 |
| 34 | COVER HINGE, WHITE |
| 35 | WCI G170071 |
| 36 | PAD, FOAM (2) |
| 37 | G187559 Frigidaire Refrigerator Bushing |
| 38 | STRAP, MULLION MOUNTING |
| 39 | WCI G162051 |
| 40 | WCI G177254 |
| 41 | TUBE, INSULATION (2) |
| 42 | ELBOW, DRAIN |
| 43 | WCI G155529-04 |
| 44A | 216858001 Frigidaire Refrigerator Screw |
| 44 | 240396801 Frigidaire Refrigerator Tube Clamp |
| 45 | WCI G161901-02 |
| 46 | TRIM (2) |
| 47 | WCI G187219-01 |
| 48A | WCI G172409-15 |
| 48 | TRIM - SPLIT SHELVES - REAR (2) |
| 49 | PAN, DEFROST |
| 50 | WCI G161904-01 |
| 51 | WCI G162994 |
| 52 | PLUG - LOWER GRILLE |
| 53 | ROLLER ASSEMBLY - FRONT (2) |
| 53A | BOLT, HOUSING TO FRONT RAIL (2) |
| 54A | 5304455852 Frigidaire Refrigerator Screw |
| 54 | CHANNEL, SHELF (2) |
| 54B | CHANNEL, CENTER SHELF, MOUNTING |
| 55 | WCI G176918-12 |
| 56 | SHELF - MEAT COVER |
| 57 | WCI G162178 |
| 58 | DEFLECTOR AIR |
| 59 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 59A | 5304455649 Frigidaire Refrigerator Screw |
| 60 | ROLLER (2) |
| 60B | NUT, DAMPER MOUNTING |
| 60A | WCI G162809 |
