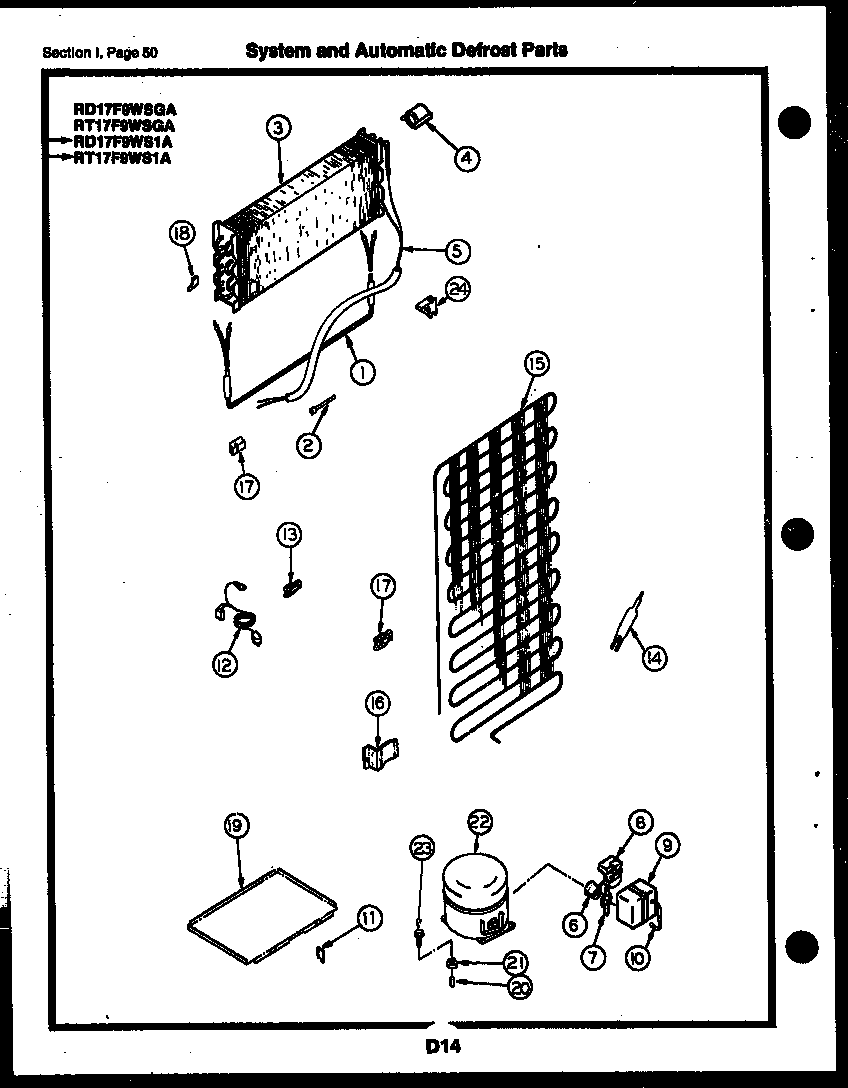

RT17F9WS1A 25 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*21952WCI G176210
15317842502 Frigidaire Defrost Heater
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT EXCHANGER (NON-ILLUSTRATED)
6WCI G185797
8WCI G182225-12
9WCI G185792
10STRAP-COVER
10A218843801 Frigidaire Refrigerator Screw
11BRACKET, DRAIN TUBE
12CORD, SERVICE
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
13A5304455651 Frigidaire Refrigerator Screw
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI G170932
16BRACKET-CONDENSER MOUNTING (4)
16A5308000039 Frigidaire Refrigerator Screw
17WCI G163099
18PLUG – EVAP. INS. L.H.
19DEFROST PLATE (NON-ILLUSTRATED)
20SLEEVE COMP MTG (3)
21218513300 Frigidaire Refrigerator Compressor Mount Grommet
22COMPRESSOR PACKAGE (NON-ILLUSTRATED)
23SCREW – 1/4-20 (3) COMP. MTG.
24BLOCK, EVAPORATOR, LH
