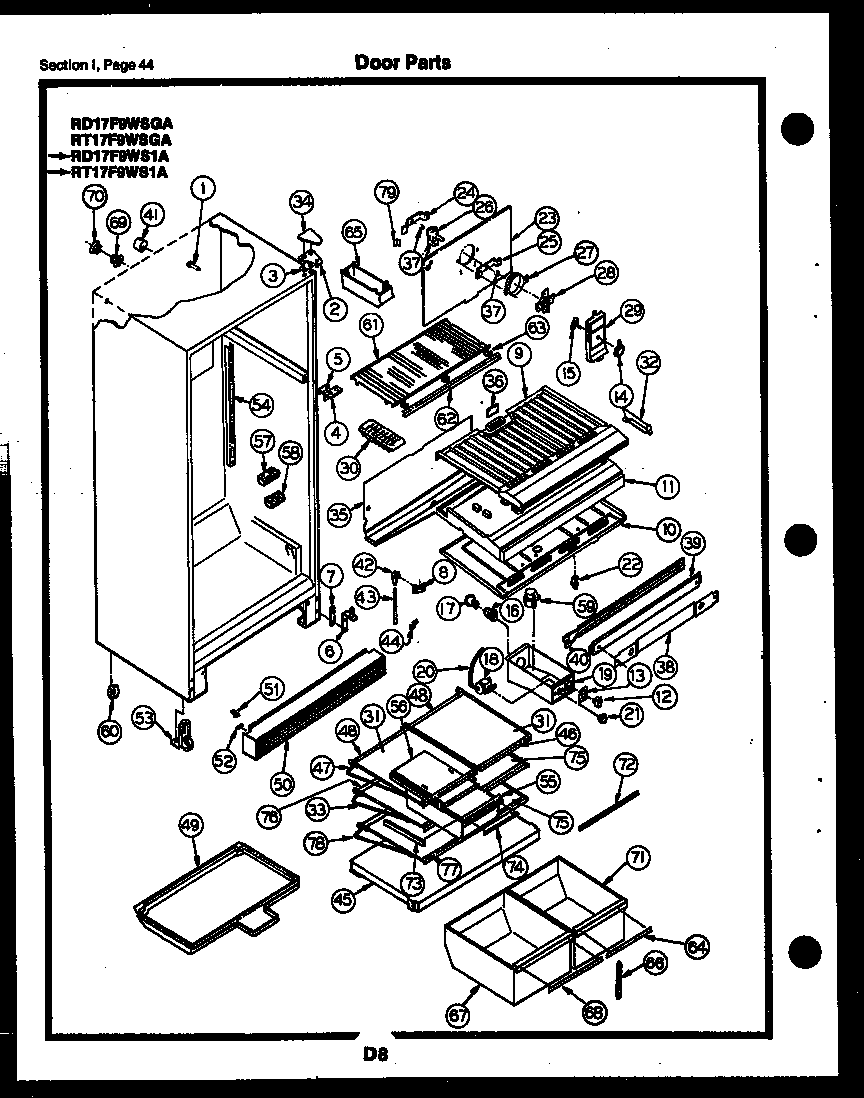

RT17F9WSGA 22 – DOOR PARTSadmin2025-04-26T10:15:46+00:00RT17F9WSGA 22 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WCI G163669 |
| 2B | WASHER, NYLON |
| 2A | 241710601 Frigidaire Refrigerator Screw |
| 2 | BRACKET, TOP HINGE |
| 2C | WCI G174747--01 |
| 2B | WASHER, NYLON |
| 3 | WCI G183861 |
| 4B | SCREW, BRACKET MOUNTING (4) |
| 4A | WCI G103903 |
| 4 | WCI G162384 |
| 4D | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 4C | WCI G142220 |
| 5 | SHIM, HINGE |
| 6C | WCI G163989 |
| 6 | BRACKET-LOWER HINGE |
| 6A | WCI G141673 |
| 6B | TAPPING PLATE (2) |
| 6F | SCREW - 1/4 X 1 (2) |
| 6E | NUT, SPEED (2) |
| 6D | WCI G142361 |
| 7 | SHIM, HINGE |
| 8A | PIN PUSH SPOUT (2) |
| 8 | SPOUT DRAIN TUBE |
| 9 | WCI G161919-01 |
| 10A | SCREW (5) |
| 10 | WCI G174714 |
| 11 | DIVIDER - COMPARTMENT |
| 12 | SWITCH - SLIDE (NON-ILLUSTRATED) |
| 13 | LABEL - CONTROL BOX |
| 14 | WCI G162747-06 |
| 15A | NUT, DAMPER MOUNTING |
| 15 | DAMPER FAN COVER |
| 16 | SOCKET LIGHT |
| 17 | 316538904 Frigidaire Oven Lamp Light |
| 18 | COLD CONTROL |
| 18A | WCI G107080 |
| 19 | WCI G174765-03 |
| 20 | TUBE |
| 21 | KNOB-TEMP CONTROL |
| 22 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 23 | WCI G162050-01 |
| 24 | BRACKET, REAR MOTOR MOUNTING |
| 25A | 5304455650 Frigidaire Refrigerator Screw |
| 25 | BRACKET, FRONT MOTOR MOUNTING |
| 26 | 5300158289 Frigidaire Evaporator Fan Motor |
