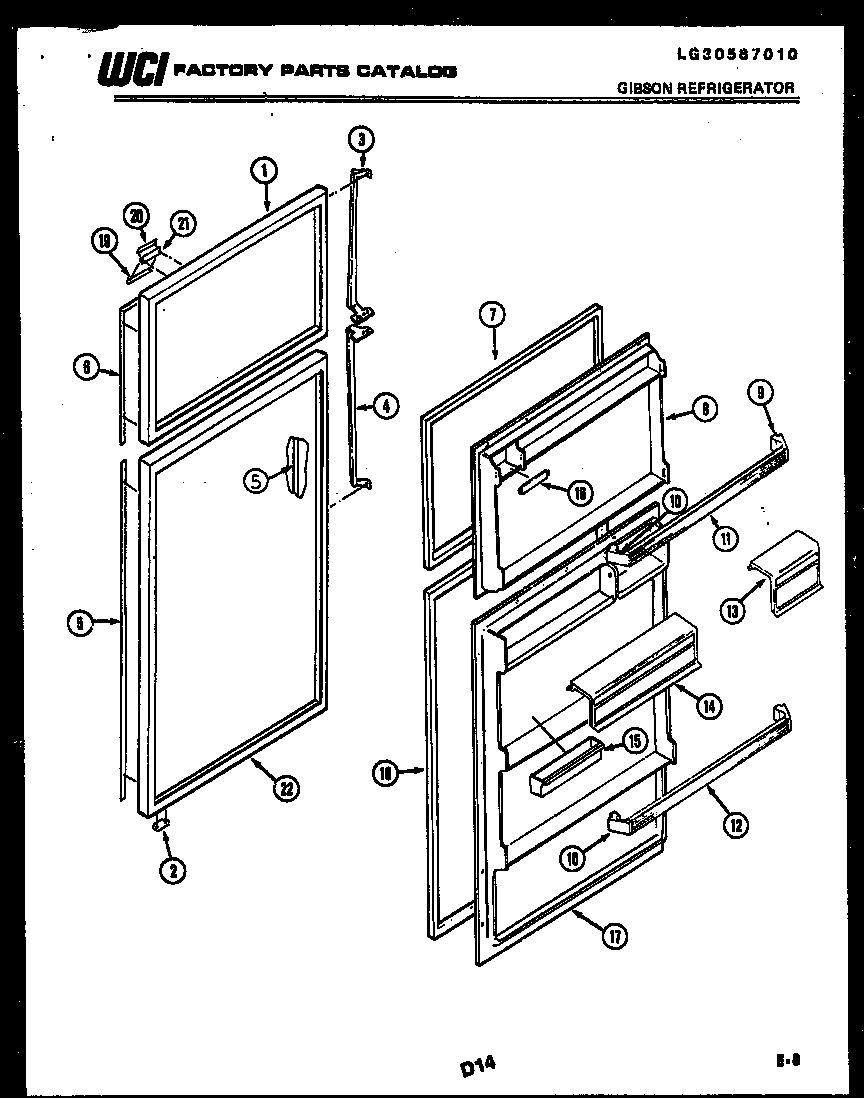

RT17F9WT3A 02 – DOOR PARTS

Products

Position	Product
*50456	240494001 Frigidaire Refrigerator Plug Button
*50455	KIT-DOOR CONV, AVOCADO
*50453	WCI G168981-01
*50451	WCI G169332-11
*50447	WCI G169332-09
*50443	WCI G169332-01
*50446	WCI G169332-08
*50456	WCI G168981-11
*50463	WCI G162977-10
*50455	WCI G168981-09
*50455	WCI G168981-10
*50464	WCI G162977-11
*50460	WCI G162977-09
*50449	WCI G169332-10
*50458	WCI G162977-08
1	WCI G189018-09
1	WCI G189018
1	WCI G189018-10
1	WCI G189018-11
1	WCI G189018-08
2	STOP, DOOR. PC & FC (2)
3	HANDLE ASSEMBLY
4A	WCI G185566
4	HANDLE ASSEMBLY
5	TRIM (2)
6	WCI G167404-01
7	GASKET-FREEZER
8A	5304455651 Frigidaire Refrigerator Screw
8	PANEL INTERIOR DOOR
8B	TAPE – FRAME
9	SUPPORT, RACK, RH, (PC) (2)
10	SUPPORT, RACK, LH (PC) (2)
11	RACK-FZR.-UPPER
12	RACK – DOOR
12A	SNUGGER RACK (NON-ILLUSTRATED)
13	DOOR-DAIRY RS
14	DOOR, DAIRY (2)
15	TRAY, UTILITY
16	RACK, JUICE CAN
17	WCI G187494-02
18	218730603 Frigidaire Door Gasket
19	LABEL, LOWER
20	LABEL, UPPER
21	NAMEPLATE
22	WCI G189020
22	WCI G189020-08
22	WCI G189020-09
22	WCI G189020-10
22	WCI G189020-11
