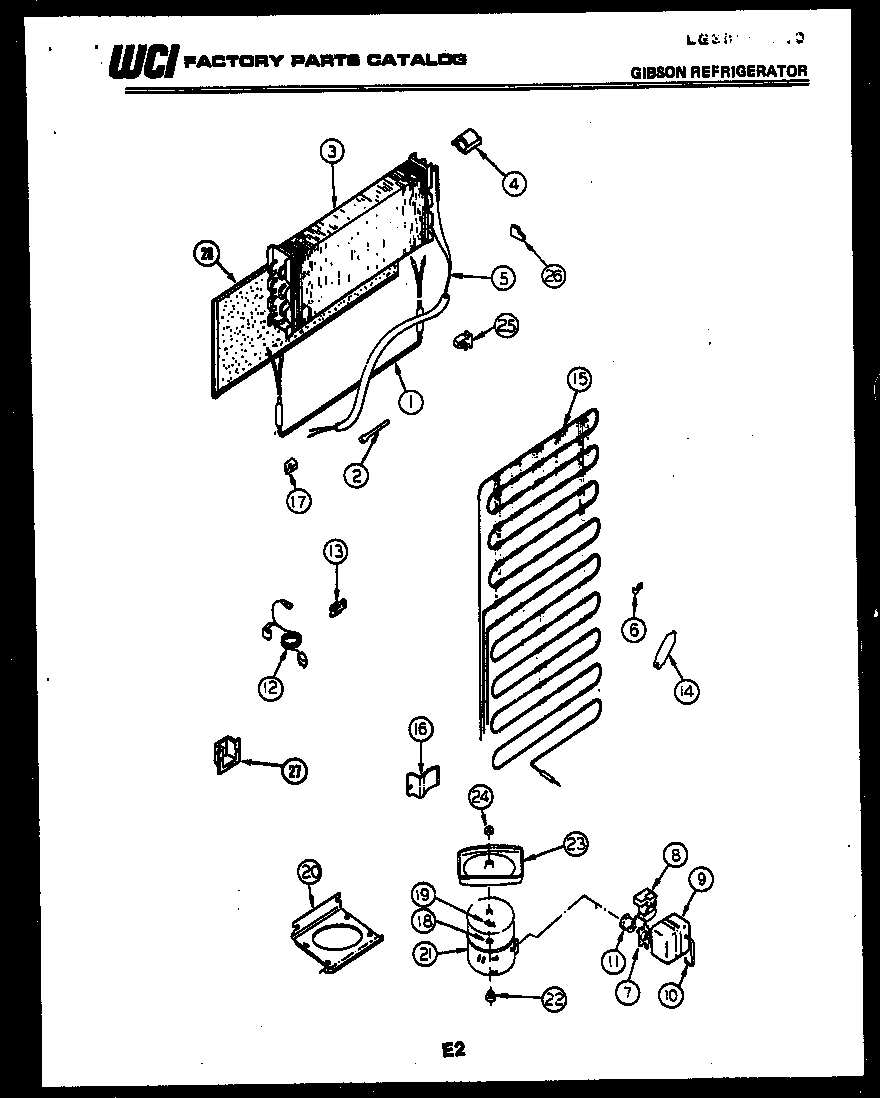

RT17F9WT3A 03 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*50514	WCI G189229-07
*50512	HOT TUBE REPAIR KIT
*50514	HARNESS-COMPRESSOR
*50515	WCI G167234
1	HEATER, DEFROST
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3	EVAPORATOR
4	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5	HEAT-EXCH
6A	5308000039 Frigidaire Refrigerator Screw
6	WCI G101747
7	RETAINER, OVERLOAD
8	WCI G182225-03
10	5303006412 Frigidaire Refrigerator Cover Mounting Strap
11	WCI G176002
12	CORD, SERVICE
13	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
14	5303305677 Frigidaire Replacement Filter Dryer Filters
15	WCI G178225
16	BRACKET-CONDENSER MOUNTING (4)
17	BLOCK, LEFT SIDE
18	WASHER, COMPRESSOR MOUNTING (4)
19	CLIP, COMPRESSOR MOUNTING (4)
20	PLATE
21	COMPRESSOR WITH ELECTRICALS
22	218513300 Frigidaire Refrigerator Compressor Mount Grommet
23	DEFROST PAN & NUT
24	NUT, LOCK
25	BLOCK, EVAPORATOR, RH
26	PLUG, EVAPORATOR INSULATION BLOCK, R H
27	WCI G183584
28	INSULATOR
